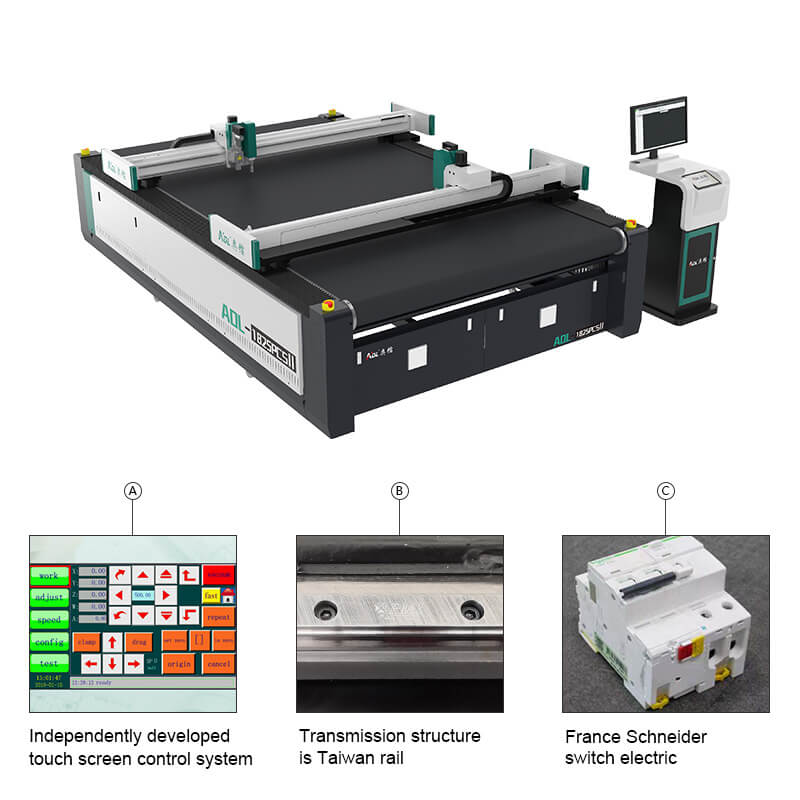

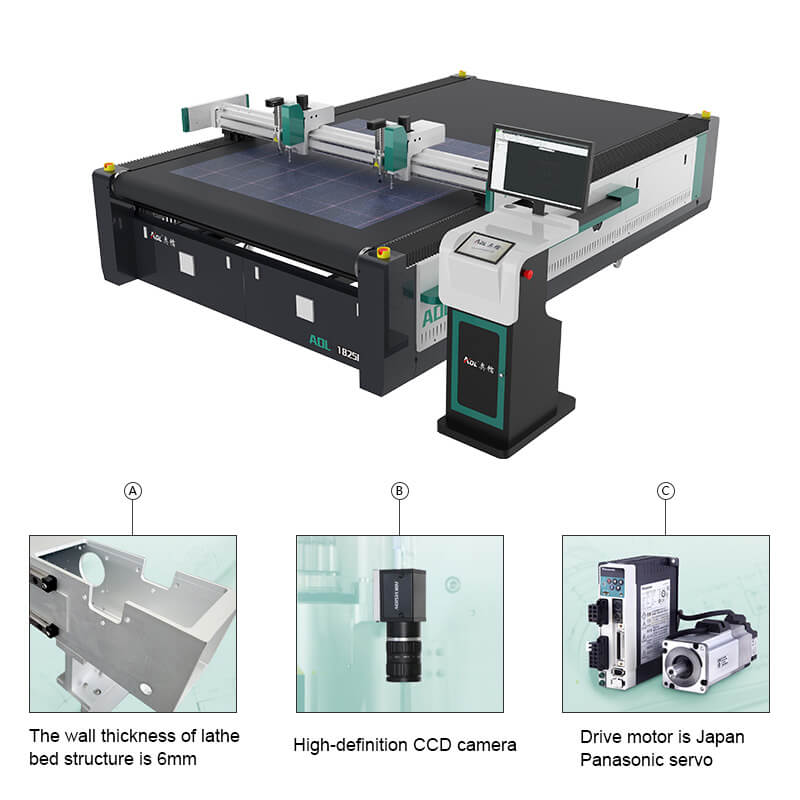

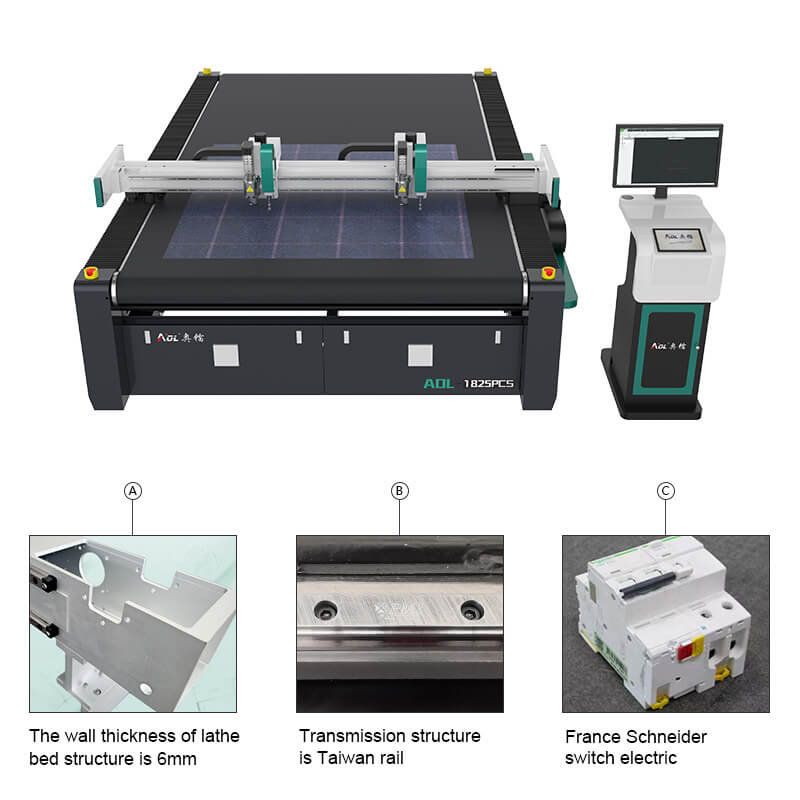

Rubber damping pad cutting machine | automatic cutting machine

The rubber damping pad cutting machine can work continuously, with high flexibility, all functions are modularly designed and can be combined arbitrarily, whether you are cutting fabric, leather, carpet, PVC, corrugated paper, foam, advertising materials, carbon fiber, gaskets, etc. Materials can easily meet your cutting needs!

Send Inquiry

Description

Product description

The cutting effect of the rubber damping pad cutting machine is equivalent to the cutting efficiency of 4-6 people, and it is cut with a blade, which has many features such as no dust, no blackening, no slump, no peculiar smell, and material saving, not only good cutting effect , the quality is stable! How can such a high-quality device not be exciting?

AOL rubber damping pad cutting machine mainly focuses on intelligent cutting of non-metallic materials in different graphics, and can quickly complete various processes such as full cutting, half cutting, milling, punching, indentation, and strokes. Our cutting machine adopts Japanese Panasonic servo driver and rack and pinion transmission system, which has fast cutting speed, high precision and cost saving.

Rubber shock pads are becoming more and more widely used, mainly because of their multiple characteristics, both high elasticity and high viscosity. The elasticity of rubber is produced by the change of its coiled molecular conformation. The interaction between rubber molecules will hinder the movement of molecular chains, thus showing the characteristics of viscosity, so that the stress and strain are often in an unbalanced state.

Cutting advantage of rubber damping pad cutting machine：

1. High-quality linear guides are used, with an accuracy error of ±0.1mm.
2. Japan’s Panasonic servo system provides power, stable and continuous power supply.
3. The rubber damping pad cutting machine is equipped with a variety of knives, which are used for material cutting in different industries and increase the added value of the enterprise.
4. Vacuum adsorption on aluminum alloy platform, strong suction, multi-zone adsorption, small materials can also be adsorbed.
5. Adopt high-performance multi-axis motion control system, independent research and development, easy maintenance.
6. Anti-collision and built-in automatic induction device to ensure the safety of operators.

Features of rubber damping pad cutting machine:

1. Vacuum adsorption function, super strong wind, strong suction, the size of the vacuum adsorption area can be selected, and the power consumption can be greatly reduced
2. Automatic tool setting function, using sensors to accurately detect the tool, greatly improving the tool setting efficiency.
3. The flatness of the table is detected by a high-precision distance detector, and the plane is corrected in real time through the software to achieve a perfect cutting effect.
4. The self-developed CAM software is used to systematically optimize the physical overcutting phenomenon of the tool, restore the graphic outline to the greatest extent, and bring customers the perfect cutting effect.

Parameter of rubber damping pad cutting machine

TECHNICAL PARAMETERS / MODEL	AOL-1625-ZS6	AOL-1825-ZS8	AOL-2125-ZS10
Effective working area	1600x2500mm	1800x2500mm	2100X2500mm
Multi-head optional	Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized
Multi-function tool	Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc.
safety devices	Infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Various KT boards, Chevron boards, honeycomb boards, car stickers, adhesives, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc.
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Imported servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10%Optional
Control System	Chinese and English LCD touch screen
Operating environment	Temperature 0-40°C Humidity 20%-80%RH
software	Automatic nesting software, camera positioning, large format camera system
Support file format	AI、PLT、DXF、CDR etc.

AOL SERVICE

Packing details of rubber damping pad cutting machine：

1. Outer packaging: standard seaborne export plywood box.

2. Inner packaging: stretchable film and plastic film to prevent moisture.

Can meet special requirements

Transportation

There are many options for transportation, and the default is sea transportation. If you have special requirements, please specify in advance.

Price, according to your destination information, transaction method, transportation method, we will provide you with a specific quotation.

After sale service：

1) Three-year free warranty (except vulnerable parts), free inspection and maintenance of main components.

2) Provide lifetime free technology upgrade service

3) Wearable parts (such as blades, workbench covers) are always available at cost when needed.

4) Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.

5) 24-hour online service, providing free technical support in different languages.

6) On-site technical support can be provided when needed.

7) After receiving the goods, AOL accepts unreasonable returns within seven days.

←Leave a message to get Quotation

←Get the product catalog and the best quotation

Eight reasons to AOL CNC cutting machine：

1. Advanced brand: ten years of professional CNC blades
2. R & D advantages: a number of patented technologies, so that the company has a deep deposit
3. Quality assurance: all products have passed European CE certification. US FDA certification
4. High-quality materials: All CNC cutting machine accessories are selected from industry-leading brands.
5. Advanced technology: starting from Germany, foreign advanced technology, technical support
6. High efficiency: implement one-to-one service to improve the efficiency of corporate feedback
7. Personalized customization: With the development and design functions, customers can do whatever they want
8. After-sales service: provide three-year warranty service and 24-hour online solutions.

AOL company info：

AOL has obtained CE certificates, FDA and ISO certificates. The company has successfully produced more than 50 AOL series products, enjoying a good reputation and support. Excellent quality and fast service make our products spread all over the world such as Europe, Middle East, America, South Asia and so on.
Welcome to join AOL, we will share top-level machines and services with customers all over the world.

Media information

AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.

Want to know more machine performance and other information, please leave a message for professional reply.

AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
