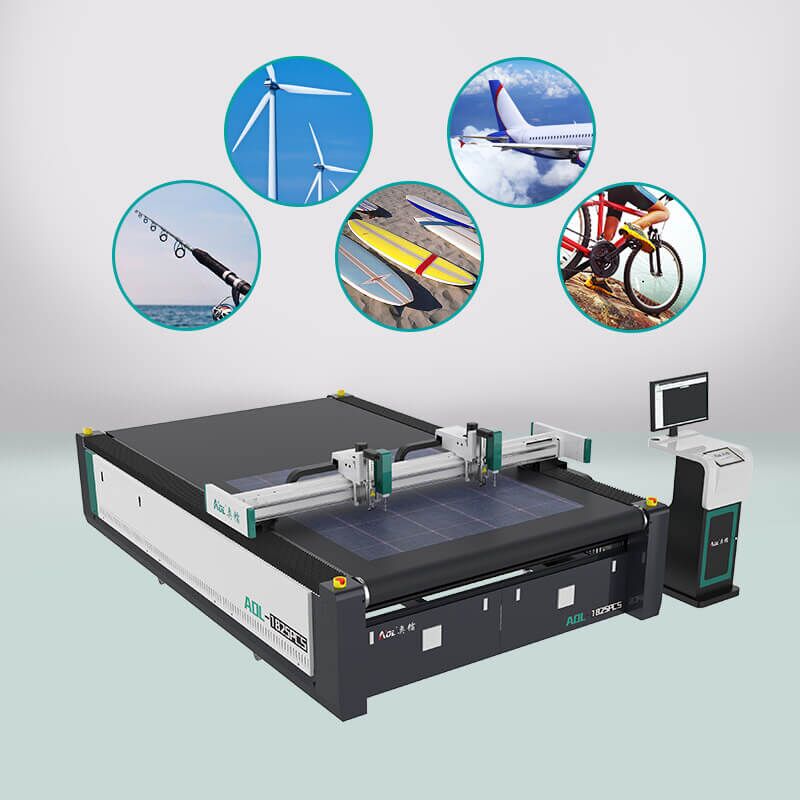

Product description
Multiple tool combinations
Can be equipped with different types of cutting tools to meet different thickness and hardness requirements
Panasonic servo motor
Japan’s Panasonic servo motor, with large torque, durable and continuous power for foam board cutting.
Vacuum adsorption platform
Optional zone adsorption, 8-16 adsorption zones. Following adsorption, strong suction holds the material to ensure accurate cutting data without deformation.
Touch screen operation panel
Color touch control panel, more intuitive operation interface, connect to the computer to directly accept data, set cutting depth and cutter head parameters, have a powerful database, support one-key retrieval.
Precision rack drive
Servo rack drive mode, the Y axis is driven by double servo motors, with strong power and stable performance.
Integral welding bed
The bed adopts welding process, aluminum alloy body frame, anti-corrosion and high hardness, high temperature heat treatment, milling machine finishing, stable and durable
Rack motion
The beam of the machine adopts an all-aluminum structure, which reduces the weight of the beam and ensures the rapid movement of the machine. The rack is used for movement, stable movement, and long use time.
Taiwan drive rail
Adopt Taiwan’s high-quality transmission guide, with its own lubrication system, low friction resistance, to ensure high-speed and smooth cutting.
Scientific electrical control system
The wiring is scientific and reasonable, and each line has a corresponding mark, which is convenient for the maintenance and maintenance of the machine. All electrical components come standard with Schneider and top brand quality.

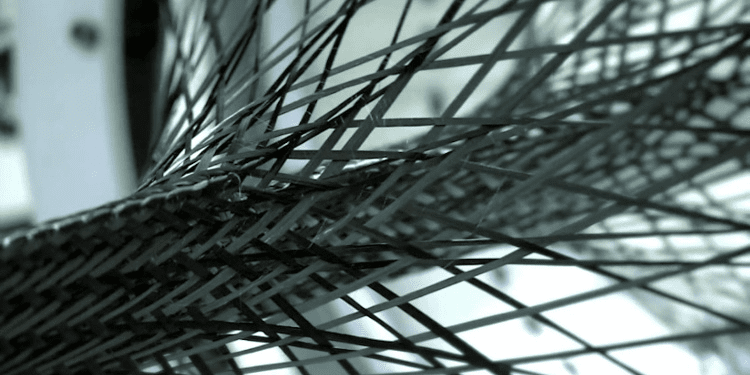

What is fiberglass grid?
Fiberglass geogrid is the abbreviation of fiberglass geogrid. The high-quality reinforced alkali-free glass fiber yarn is selected and woven into the base material by using foreign advanced warp knitting machine. The warp knitting directional structure is adopted, and the strength of the yarn in the fabric is fully utilized to improve its mechanical properties, so that it has good tensile strength, resistance to Tear strength and creep resistance, and coated with high-quality modified bitumen to form a flat network material. It follows the principle of similar compatibility, focuses on its composite performance with asphalt mixture, and fully protects the glass fiber base material, which greatly improves the wear resistance and shear resistance of the base material, so that it can be used for pavement enhancement and resistance. The occurrence of road diseases such as cracks and ruts has ended the difficulty of strengthening the asphalt pavement.
How does a fiberglass grid cutter work?
Lay the material on the cutting table. For some light coils, we are also equipped with an automatic loading and unloading device. In terms of automatic material transmission, input the material pattern you want to cut on the computer, set the automatic positioning material position and size, and the computer will automatically typesetting. , and you can cut it with one click after you are satisfied.
The basic functions of fiberglass grid cutting machine:
1. The table compensation function, the flatness of the table is detected by a high-precision distance detector, and the plane is corrected in real time through the software to achieve a perfect cutting effect.
2. The self-developed CAM software is used to systematically optimize the physical overcutting phenomenon of the tool, restore the graphic outline to the greatest extent, and bring customers the perfect cutting effect.
3. Fast and simple automatic tool setting system, using sensors to accurately detect the tool, greatly improving the tool setting efficiency.
4. Vacuum adsorption function, super strong wind, strong suction, the size of the vacuum adsorption area can be selected, and the power consumption can be greatly reduced
5. High-definition CCD camera realizes automatic positioning and sleeve cutting of various materials, eliminating the problems of inaccurate manual positioning and printing deformation.
6. Automatically detect the thickness of the material, no need to manually measure and then record the thickness data to the software
Advantages of fiberglass grid cutting machine:
1. Automatic loading and unloading device, saving labor.
2. Independently develop and design CAM software, intelligent software compensates, optimizes cutting path, and improves production energy efficiency.
3. Japan’s Panasonic servo system provides power, stable and continuous power supply.
4. The system intelligently optimizes typesetting and cutting, provides better cutting and filling paths, and saves more than 30% of materials.
5. The infrared induction safety device ensures the safety of the operator during the high-speed movement of the machine, and at the same time avoids the loss of cutting materials.
6. Precise cutting balance, effectively reduce the loss of die and cutting board.
The parameters of fiberglass grid cutting machine
| TECHNICAL PARAMETERS / MODEL | AOL-1625-ZS6 | AOL-1825-ZS8 | AOL-2125-ZS10 | ACCEPTING SPECIAL-SHAPED CUSTOMIZATION |
|---|---|---|---|---|
| Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500mm | |
| Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||
| Multi-function tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. | |||
| safety devices | Infrared sensing, safe and reliable | |||
| Cutting speed | 200-2000mm/s | |||
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||
| Applicable materials | Various KT boards, Chevron boards, honeycomb boards, car stickers, adhesives, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc. | |||
| Material fixing method | Vacuum partition adsorption | |||
| Transmission port | Network port | |||
| Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |||
| rated power | 11kw | |||
| Rated voltage | 380V±10%/220V±10%Optional | |||
| Control System | Chinese and English LCD touch screen | |||
| Operating environment | Temperature 0-40°C Humidity 20%-80%RH | |||
| software | Automatic nesting software, camera positioning, large format camera system | |||
| Support file format | AI、PLT、DXF、CDR etc. | |||
What is the use of fiberglass grating material?
1. The old asphalt concrete pavement is reinforced to strengthen the asphalt surface layer to prevent diseases.
2. The cement concrete pavement is converted into a composite pavement to suppress reflection cracks caused by plate shrinkage.
3. Road extension and improvement project to prevent cracks caused by the junction of new and old and uneven settlement.
4. Reinforcement treatment of soft soil foundation is conducive to the consolidation of soft soil water separation, effectively inhibits settlement, uniform stress distribution, and enhances the overall strength of the roadbed.
5. The semi-rigid base of the newly built road produces shrinkage cracks, and the reinforcement is reinforced to prevent the pavement cracks caused by the reflection of the base cracks
