Product description
Multiple tool combinations
Can be equipped with different types of cutting tools to meet different thickness and hardness requirements
Panasonic servo motor
Japan’s Panasonic servo motor, with large torque, durable and continuous power for foam board cutting.

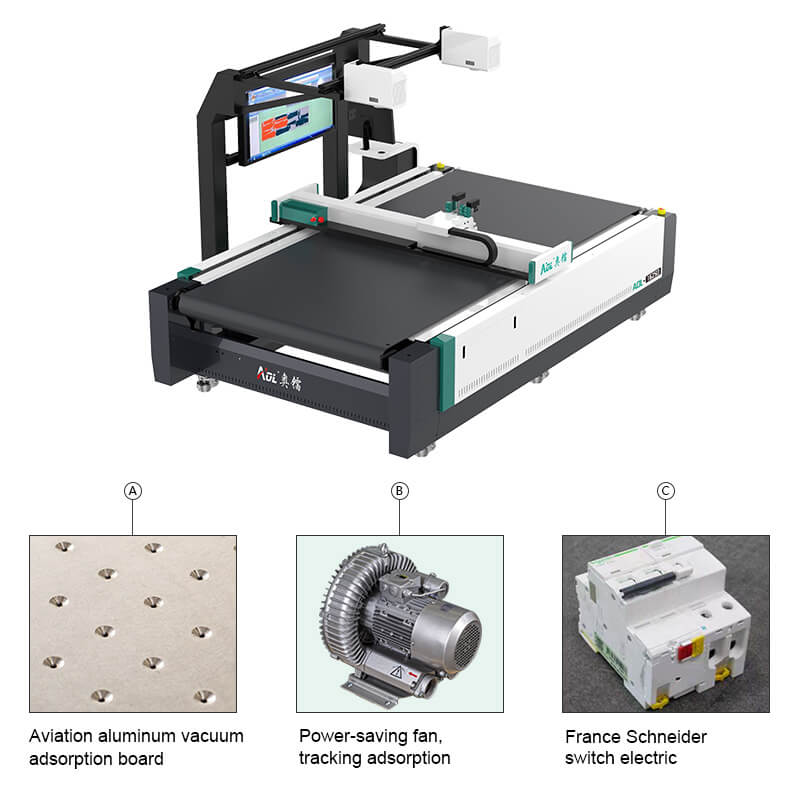

Vacuum adsorption platform
Optional zone adsorption, 8-16 adsorption zones. Following adsorption, strong suction holds the material to ensure accurate cutting data without deformation.
Touch screen operation panel
Color touch control panel, more intuitive operation interface, connect to the computer to directly accept data, set cutting depth and cutter head parameters, have a powerful database, support one-key retrieval.
Precision rack drive
Servo rack drive mode, the Y axis is driven by double servo motors, with strong power and stable performance.
Integral welding bed
The bed adopts welding process, aluminum alloy body frame, anti-corrosion and high hardness, high temperature heat treatment, milling machine finishing, stable and durable
Rack motion
The beam of the machine adopts an all-aluminum structure, which reduces the weight of the beam and ensures the rapid movement of the machine. The rack is used for movement, stable movement, and long use time.
Taiwan drive rail
Adopt Taiwan’s high-quality transmission guide, with its own lubrication system, low friction resistance, to ensure high-speed and smooth cutting.
Scientific electrical control system
The wiring is scientific and reasonable, and each line has a corresponding mark, which is convenient for the maintenance and maintenance of the machine. All electrical components come standard with Schneider and top brand quality.
Vibrating knife sound insulation board cutting machine with CE/ISO/FDAcertificate
Advantage of sound insulation board cutting machine cutting machine
1. High precision, the equipment adopts Panasonic servo motor, pulse positioning, positioning accuracy ± 0.01mm, cutting accuracy ± 0.5mm, zero error in repeated cutting.
2. Multi-function, the equipment integrates cutting and grooving, automatic cutting, which can replace 4-6 labors.
3. High efficiency, the equipment adopts self-developed control system, and the running speed can reach 2000mm/s.
4. The cutting effect is good, the equipment adopts tungsten steel blade with a thickness of 1-3mm, and there is no sawtooth and no burr for cutting.
5. Environmental protection, the equipment is cut with a blade, and the cutting is smoke-free and dust-free.
Parameter of Vibrating knife sound insulation board cutting machine
| TECHNICAL PARAMETERS / MODEL | AOL-1625-ZS6 | AOL-1825-ZS8 | AOL-2125-ZS10 | ACCEPTING SPECIAL-SHAPED CUSTOMIZATION |
|---|---|---|---|---|
| Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500mm | |
| Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||
| Multi-function tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. | |||
| safety devices | Infrared sensing, safe and reliable | |||
| Cutting speed | 200-2000mm/s | |||
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||
| Applicable materials | Various KT boards, Chevron boards, honeycomb boards, car stickers, adhesives, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc. | |||
| Material fixing method | Vacuum partition adsorption | |||
| Transmission port | Network port | |||
| Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |||
| rated power | 11kw | |||
| Rated voltage | 380V±10%/220V±10%Optional | |||
| Control System | Chinese and English LCD touch screen | |||
| Operating environment | Temperature 0-40°C Humidity 20%-80%RH | |||
| software | Automatic nesting software, camera positioning, large format camera system | |||
| Support file format | AI、PLT、DXF、CDR etc. | |||
Sound insulation board cutting machine application industry
There are two kinds of vibration, one is the vibration generated by its own vibration, and the other is the vibration generated by the sound transmission energy, and the shock-absorbing sound insulation board can effectively reduce the vibration and isolate the sound, so modern decoration, mostly directly adopt sound insulation. The board is soft-packed, which not only isolates the sound, but also reduces the vibration caused by resonance, making the living environment more secure and comfortable. Because it is a soft bag, there are higher requirements for the aesthetics of the material, and the cutting accuracy and effect are higher.
If there are other industries, all non-metallic materials are cut by AOL CNC cutting machines, as follows:
1. Packaging industry: corrugated cardboard, honeycomb cardboard, kraft paper and other packaging boxes (cutting, creasing, dotted cutting, scribing marks)
2. Advertising industry: stickers, labels, PP paper, flags, inkjet cloth, light boxes, KT boards
3. Automotive interior industry: car interior dimensions of various models and materials such as leather and artificial leather (with a multi-model database)
4. Composite materials: EVA, EPE, PVC, soft glass, fiber products (glass fiber, carbon fiber, etc.), thermal insulation cotton, sound insulation board, rubber, etc.
5. Textile industry: clothing fabrics of various materials, matching materials for suits, home textiles (curtains, sofas, tablecloths, etc.)
6. Leather industry: genuine leather materials, artificial leather materials, composite leather materials, etc. (cutting, marking)
7. Gasket industry: gaskets of various materials (asbestos, non-asbestos, rubber), PTFE (special-shaped, small-area cutting)
8. Carpet industry: various types of carpets, silk circle carpets, diatom mud carpets, etc., carpets for various environments (standard or special-shaped cutting)
AOL SERVICE
Packaging details of sound insulation board cutting machine
Transportation
After sale service
Eight reasons to AOL CNC cutting machine
1. Advanced brand: ten years of professional CNC blades2. R & D advantages: a number of patented technologies, so that the company has a deep deposit
3. Quality assurance: all products have passed European CE certification. US FDA certification
4. High-quality materials: All CNC cutting machine accessories are selected from industry-leading brands.
5. Advanced technology: starting from Germany, foreign advanced technology, technical support
6. High efficiency: implement one-to-one service to improve the efficiency of corporate feedback
7. Personalized customization: With the development and design functions, customers can do whatever they want
8. After-sales service: provide three-year warranty service and 24-hour online solutions.
AOL company info
Welcome to join AOL, we will share top-level machines and services with customers all over the world.
Media information
AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.
Want to know more machine performance and other information, please leave a message for professional reply.
AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
