AOL CNC offers a wide selection of software applications, all optimized to deliver a state-of-the-art and streamlined digital control of the cutting process with best output performance as well as peripheral software solutions covering the overall cutting process from pattern design and optimization to the final cut product. AOL cutting software is to specifically fits the needs of customers within the Fabric cutting in the apparel and home textile industry sector.
Usually suitable for the materials:
Cotton cloth is generally used to make casual wear, underwear and fashion.
Linen cloth is generally used to make casual wear and work wear. Its advantages are moisture absorption and heat conduction, strong air permeability, but its disadvantages are uncomfortable wearing and rough appearance.
Silk is most often used to make women’s clothing.
Woolen cloth is usually used to make formal high-end clothes such as dress suits. Its advantage is that it is elegant and flexible, but its disadvantage is that it is more difficult to wash.
Leather is generally used to make winter clothes. Its advantage is that it is light and warm, but its disadvantage is that it is expensive and requires high care.
Chemical fiber is a textile made of fibers made of polymer compounds as raw materials.
Cutting video

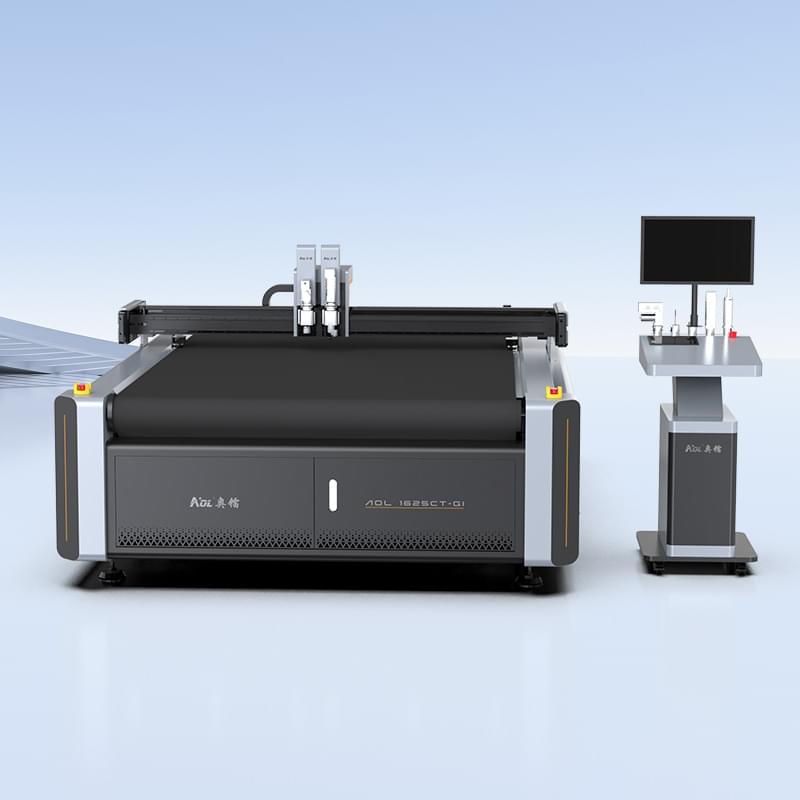

Advantage of Automatic Computer Fabric Cutting Machine
Application of Automatic Computer Fabric Cutting Machine
Computer Fabric Cutting Machine can cut can cut fabric, leather, rubber, gasket etc.Also Clothes or decorations made of fur.
Cutting display
Specifications of Automatic Computer Fabric Cutting Machine
| Technical parameters / model | AOL-1625-ZS6 | AOL-2125-ZS10 | Accept special model customization | |||
| Effective working area | 1600x2500mm | 2100X2500 | ||||
| Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||
| Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
| safety devices | Safety devices use infrared sensing, safe and reliable | |||||
| Cutting speed | 200-2000mm/s | |||||
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
| Applicable materials | cotton, linen, silk, blends, fibers, leather, wool, modal | |||||
| Material fixing method | Vacuum partition adsorption | |||||
| Transmission port | Network port | |||||
| Transmission system | Imported servo motor, linear linear guide, timing belt, lead screw | |||||
| rated power | 11kw | |||||
| Rated voltage | 380V±10%/220V±10% Optional | |||||
| Control System | Chinese and English LCD touch screen | |||||
| Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
| Software | Automatic nesting software, template entry software（Optional） | |||||
| Support file format | AI、PLT、DXF、CDRetc | |||||
| Overall size | 3570x2290x1165mm | 3570x25800x1165mm | ||||
FAQ
1. Are you a trading company or a factory?
We are manufacturers.
2. When can we arrange shipment?
We usually arrange shipment?within 15 days after getting deposit, but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
Why Choose Computer Fabric Cutting Machine
Performance of Automatic Cloth Cutting Machine
1、Welded structure by thick steel tube welding under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.High accuracy, long service time, steady movement.
2、Adopt linear guide rail, make sure the machine square the accuracy and can withstand large load.
3、Mechanical and electrical design, selection of straight excellent brand electrical accessories.
4、9KW HSD ATC spindle power changeknife spindle to ensure the machine can be vigorous cutting.
5、Breakpoint power function for carving.
6、Auto lubricating system, one touch can finish periodic maintenance easily.
7、Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa.
8、New function add oscillating knife for cutting soft materials such as gasket, rubber, PVC,carton, PU.
Reasons for choosing AOL CNC equipment
1.High technology enterprise in China AAA Credit Enterprise, AAA heavy contract
2. Has 58 national R&D patents
3. The whole series of products have passed the national quality system certification
4. All series of electrical products are selected from leading brands in the industry
5. More than 25000+ customers worldwide
6. AOL promises to enjoy three-year warranty service for all products
7. AO promises lifetime free technology upgrades and free software upgrades.
Service OF AOL
1.Three years warranty,main parts are free of charge when problems happened during the guarantee period.
2.We provide the consumable parts at agent price when you need replacement.
3.24 hours online service each day,free technical support with different languages.
4.We provide door to door technical support ,if necessary.
Media of AOL
The price of CNC knife cutting machine, Please inquire and tell us your cutting material and size.
If you want to know the price of the digital gasket cutting machine, please send us the name, size and thickness of the material to be cut, so as to give you the most detailed quotation.
More autimatic gasket cutting machine for sale, welcome to visit https://www.aollaser.net/
