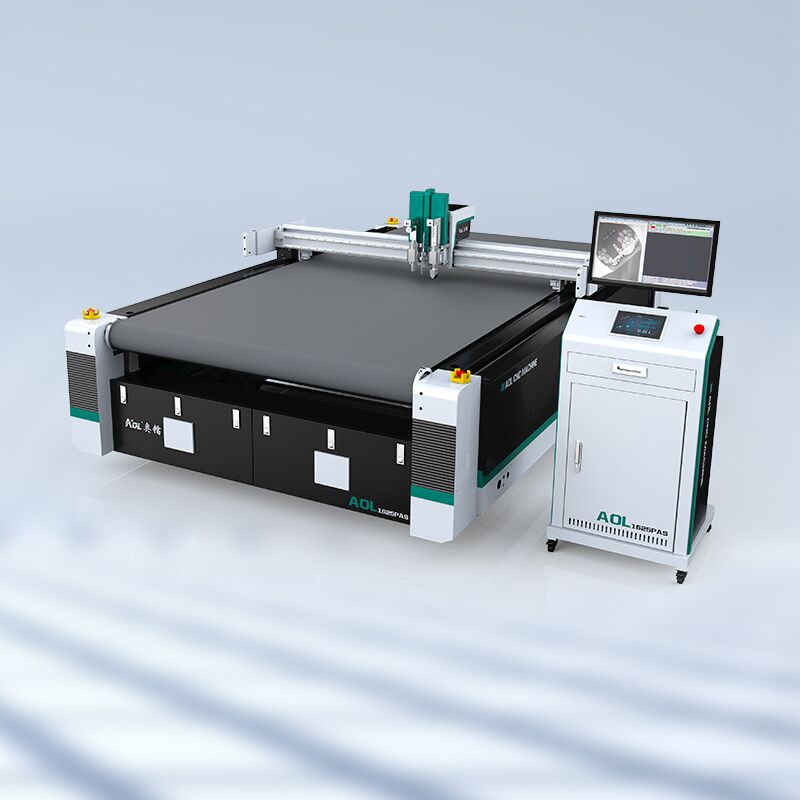

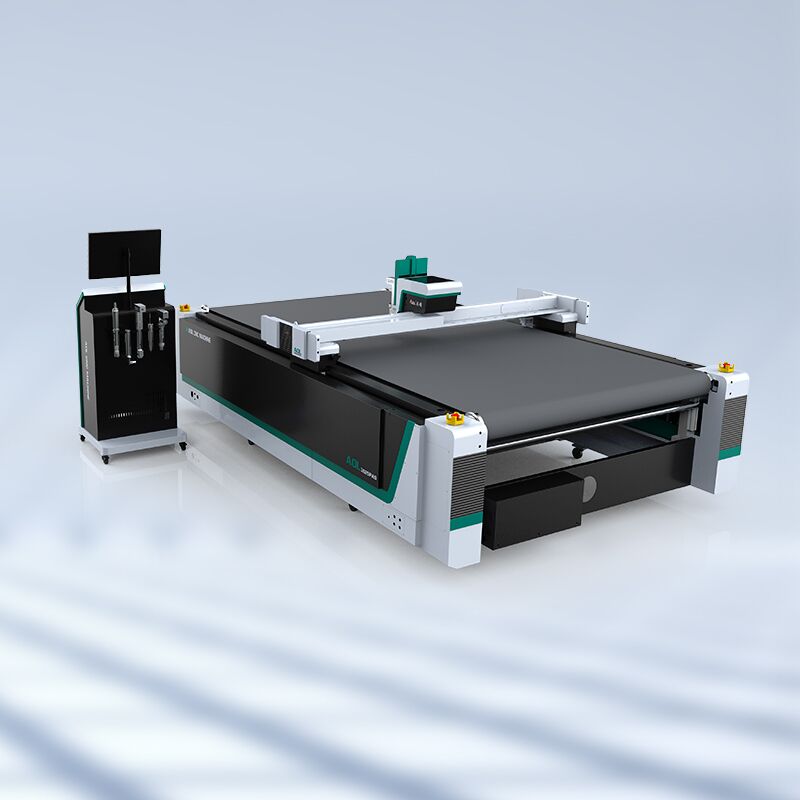

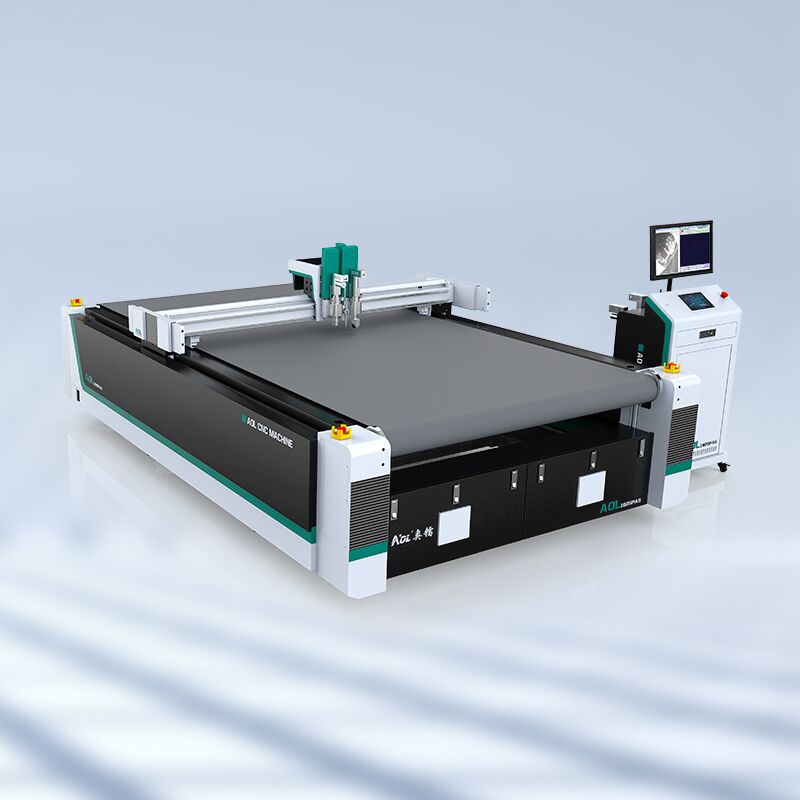

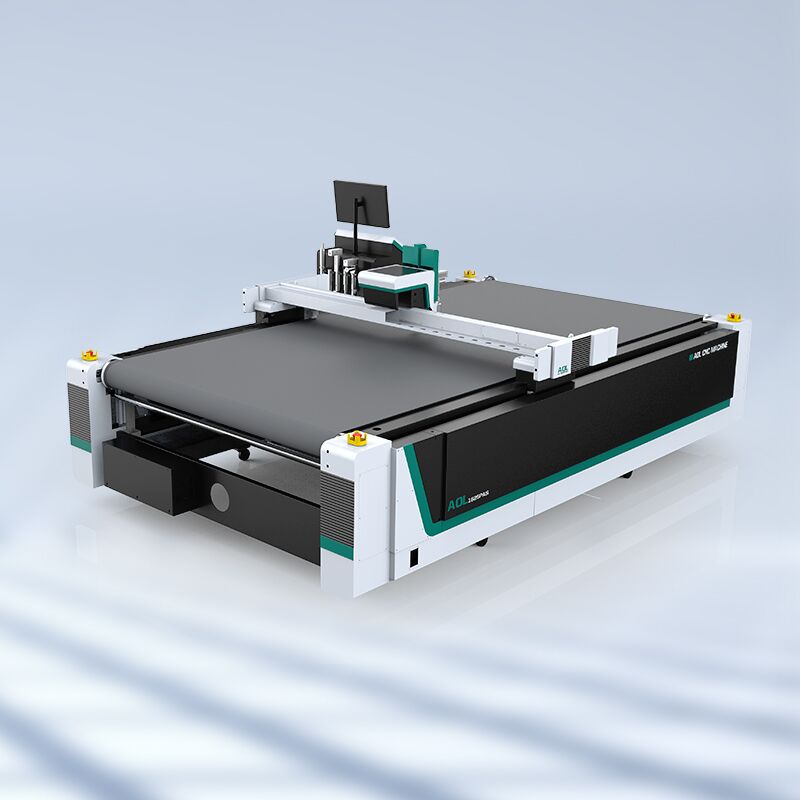

Functional features of Digital Cardboard Cutting Machine
1.Automatic positioning: infrared precise positioning to the cutting point2.Automatic cutting: CNC system fully automatic cutting3.Automatic feeding and receiving: automatic feeding device with correction system to maintain consistent quality
Advantage of Digital Cardboard Cutting Machine
1. CCD Sensor Auto Positioning, The camera automatically patrols the edge and cuts at high speed;
2. Pneumatic automatic paper feeding system, stacking up to 600 sheets;
3. Aviation aluminum alloy vacuum adsorption platform with sturdy heat insulation anti-corrosion, a wider range of cutting materials;
4. Optional blade suits various media cutting demands;
5. Digital Servo system, more accurate, more stable, lower noise.
Application material of Digital Cardboard Cutting Machine
AOL CNC corrugated cardboard cutting machine is widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This commercial digital cutting machine provides perfect solutions for printing.
Cutting display of Digital Cardboard Cutter
Parameter of Digital Cardboard Cutting Machine
| Technical parameters | 1625PAS |
|---|---|
| Effective working area | 1600*2500mm |
| Multi-function cutting head | The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut |
| Tools | Universal Drawing Tool, Creasing Wheel Tool |
| Moving speed | 800-1500mm/s |
| Repeat precIsion | ±0.05mm |
| Interface | Enternet port |
| Control panel | LCD touch screen |
| Drive system | Imported servo motor, linear guid, synchronous belt, screw |
| Cutting material | Paperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam and so on |
| Instruction system | HP- GL Compatible format |
| Rated power | 2. 2KW |
| Rated voltage | 220V |
| Cutting thickness | ≤50mm(According to different material) |
| Material fixed way | Vacuum adsorption |
| Auto feeding system | Acuum sucker adsorpting sheet |
AOL SERVICE
Details of Packaging
1. Outer packaging: standard seaborne export plywood box.
2. Inner packaging: stretchable film and plastic film to prevent moisture. Flexible packaging machine accessories
3. Personalization: If you have special requirements for packaging, you can negotiate friendly.
Transportion
There are many options for transportation, and the default is sea transportation. If you have special requirements, please specify in advance.
Price, according to your destination information, transaction method, transportation method, we will provide you with a specific quotation.
After sale service
1. Our standard warranty period starts from the completion of delivery. We provide you with a three-year warranty service and professional machine maintenance.
2. The wearing parts (blade, countertop) are sold to users at the lowest price.
Delivery time
we have our own factory. After placing the order, we will start manufacturing the sticker cutting machine. At the same time, we will make a reasonable delay based on the order volume of the month. Our delivery time is about 15-20 days on average, if you want to specify a time, we can arrange a reasonable time to complete the delivery.
Eight reasons to choose Automatic Corrugated Box Making Machine
1. Advanced brand: ten years of professional CNC blades2. R & D advantages: a number of patented technologies, so that the company has a deep deposit
3. Quality assurance: all products have passed European CE certification. US FDA certification
4. High-quality materials: All CNC cutting machine accessories are selected from industry-leading brands.
5. Advanced technology: starting from Germany, foreign advanced technology, technical support
6. High efficiency: implement one-to-one service to improve the efficiency of corporate feedback
7. Personalized customization: With development and design functions, customers can do whatever they want
8. After-sales service: provide three-year warranty service and 24-hour online solutions.
About AOL
AOL CNC Equipment Co., Ltd. is a high-tech enterprise specializing in the development, manufacturing, sales and after-sales service of flexible material cutting and laser cutting machines, mainly including CNC intelligent blade cutting machines, laser cutting machines, laser fiber cutting machines, and laser cutting machines. Various types of cutting machines such as labeling machines can meet the cutting processing of metal materials and flexible materials of different materials, and are widely used in advertising packaging, composite materials, carpet industries, clothing textiles, automotive interiors, and leather industries. In addition, AOL also has an independent CNC cutting machine brand AOYOO.
The company is strong. AOL CNC Equipment Co., Ltd. is a high-tech industry in China and an AAA-level credit enterprise. The product quality has undergone multiple tests and the after-sales system is complete. It has provided reliable CNC cutting machines for more than 8,000 users worldwide. Provide professional industry cutting assembly line solutions for many users,
AOL is committed to multi-industry flexible material cutting solutions for global users. The annual output of high-quality CNC cutting machines in the AOL factory can reach 2000 units, and each machine is provided with a three-year warranty service.
Media information
AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.
AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
