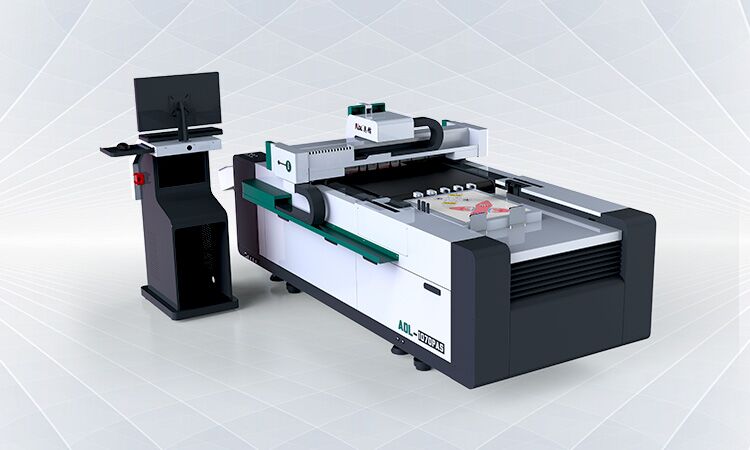

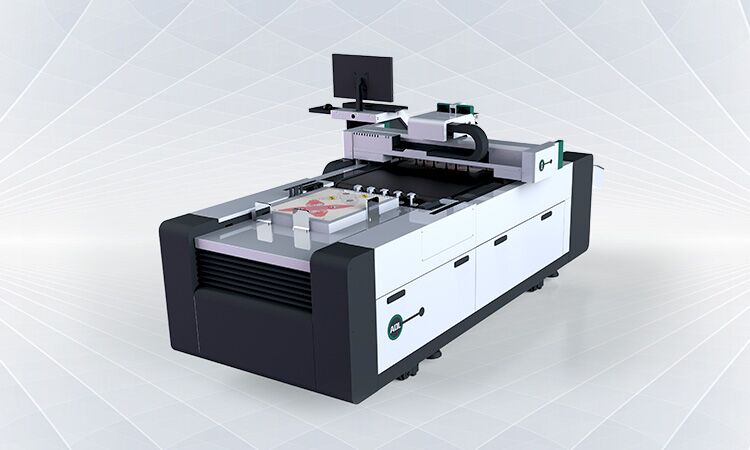

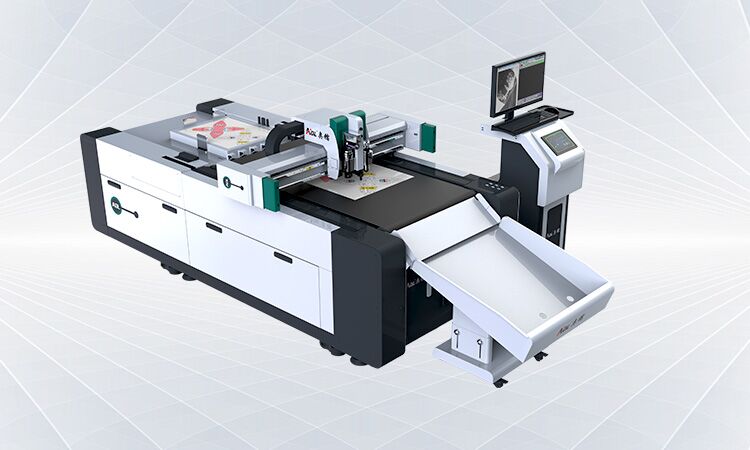

AOL automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform.Equipped with 3 tools, 1 knife for cutting ,1 knife for kisscut and creasing wheel is also included. It can quickly and precisely make through cutting,half cutting,creasing and marking.Besides, the machine has CCD camrea, which highly improve cutting accuracy, It is a cost-effective smart equipment that meets all your creative processing.
The upgraded cutting machine is also equipped with a vibrating knife, which can cut thicker cardboard such as corrugated cardboard and honeycomb cardboard, with more cutting materials. More cost-effective

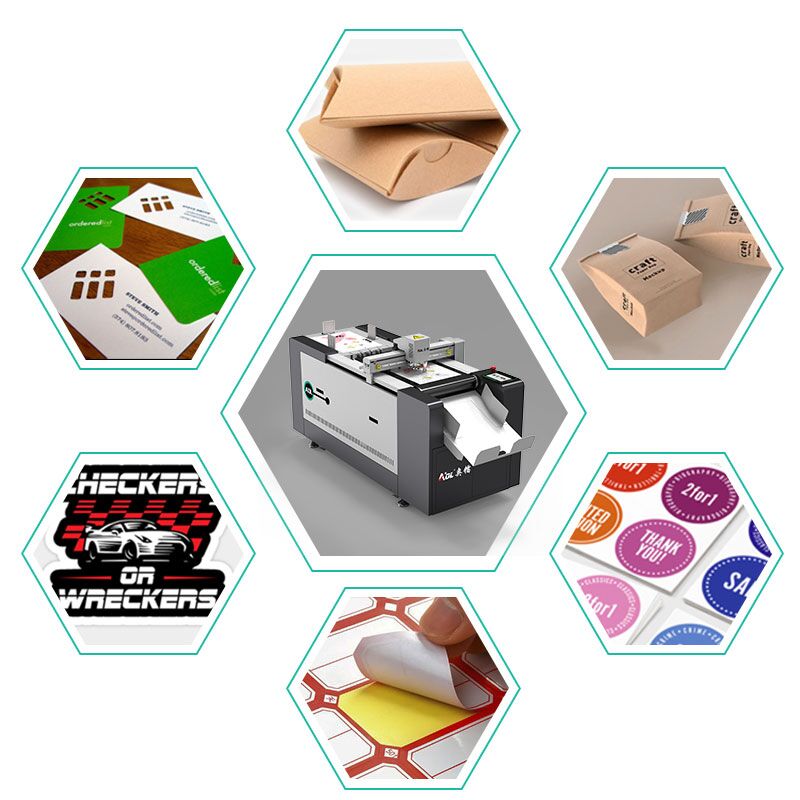

AOL-1070 Digital Advertising Board Sticker Paper Cardboard box Sample Macking Machine is widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This machine provides perfect solutions for printing.
PARAMETERS
Information about the parameters of Digital Advertising Board Cutting Machine | Vinyl Sticker Cutting Machine
| Technical parameters | 1070 |
| Effective working area | 1000*700mm |
| Multi-function cutting head | The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut |
| Tools | Oscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife |
| Overall size | 3870*1230*1280mm L’W’H |
| Moving speed | 800-1500mm/s |
| Repeat precIsion | ±0.05mm |
| Interface | Enternet port |
| Control panel | LCD touch screen |
| Drive system | Imported servo motor, linear guid, synchronous belt, screw |
| Cutting material | Paperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam and so on |
| Instruction system | HP- GL Compatible format |
| Rated power | 2. 2KW |
| Rated voltage | 220V |
| Cutting thickness | ≤50mm(According to different material) |
| Material fixed way | Vacuum adsorption |
| Auto feeding system | Acuum sucker adsorpting sheet |
ADVANTAGES
Advantage of Digital Paper Cardboard box Sample Macking Machine
1.Super-high cost performance — CNC intelligent cutting, indentation, drawing: cutting tool, indentation wheel tool, drawing pen and precision industrial camera and vision positioning system of precision industrial camera. There is a design based on your original drawing. AOL-1070 could achieve the label cutting in all shapes, cutting and indentation of carton in all shapes, vacuum suction cup on cross member working with the function of paper separating air jet nozzle in feeding structure, so as to get rid of the paper adhesion caused by static electricity.
2.Traceless knife: The design draft in AI and PS is exported to be dxf and it is sent to the controlling software, AOL; and then the following process could be implemented automatically without the production of knife model, which save the time and cost of model shaping. Press the “Printing” to finish the cutting and indentation.
3.Multi-functional rapid paper sending production: AOL-1070 only takes 30-60s to handle the label or card paper at the size of 3A paper, and the time is decided by the complexity of the shape.

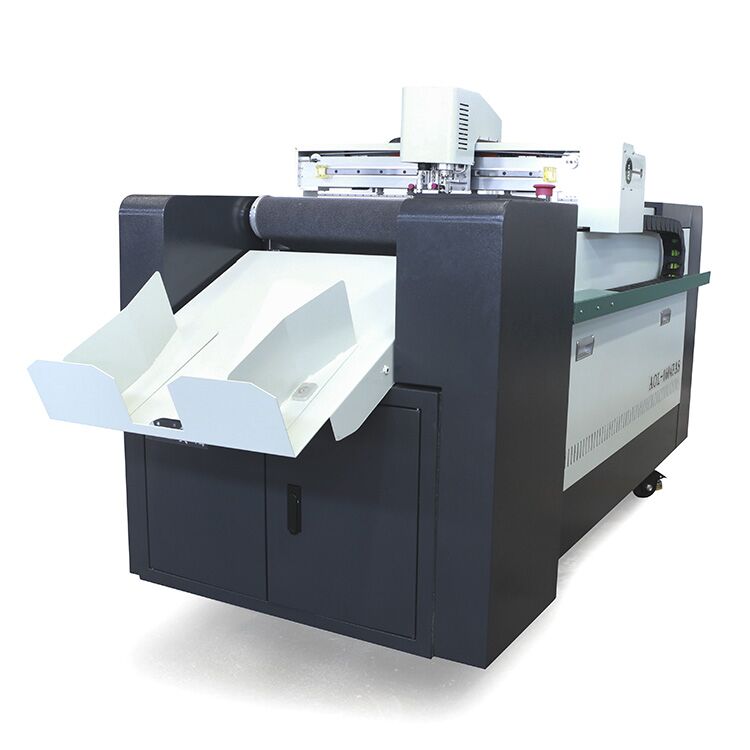

4.Automatic pulling and receiving, save time and energy.
5.AOL’s unique tools exchange system, one machine solves a variety of processe
SAMPLE
AOL’s main products include intelligent blade cutting machine, 3D crystal inner engraving machine, laser marking machine and laser fiber cutting machine. Welcome to consult!
