Application of Car Mat Cushion Cutter
Applicable fabrics: cotton, linen, silk, blends, fibers, leather, wool, modal (pay special attention to poor fiber cut).
Car mat cushion cutting machine applicable industries: apparel, automotive interiors, home, luggage, footwear, home textiles, outdoor tents and other large-scale production and processing enterprises.
1.Leather—-Foot pad, automative cushion,trunk mat, leather seat cover
2.steering wheel cover—- Oscillating knife
3.PVC—Foot pad, trunk mat—- Drag tool
4.Fabric—-Seat cover—- Wheel-cut tool
5.Plastic loop—-Foot pad, trunk mat—- Oscillating knife
6.Plush material—-Foot mat, trunk mat—- Oscillating knife
7.EVA—-Trunkmat—- Oscillating knife
8.XPE—-Trunk mat—- Oscillating knife
9.Blended material—-Seat cover, foot mat—- Drag tool
10.Cashmere material computer cutting machine—-foot pad trunk box—-vibration knife

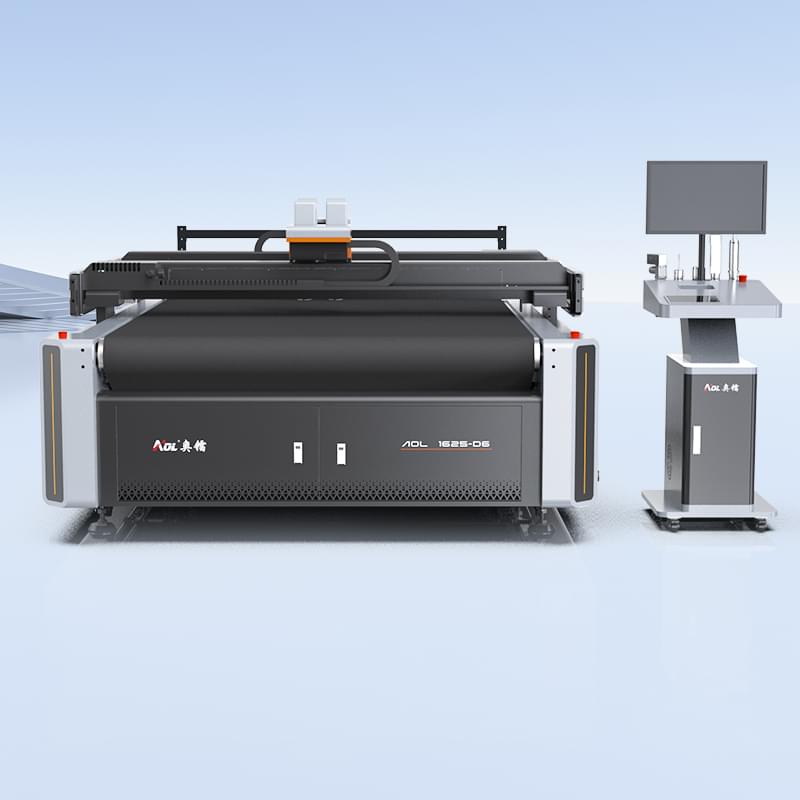

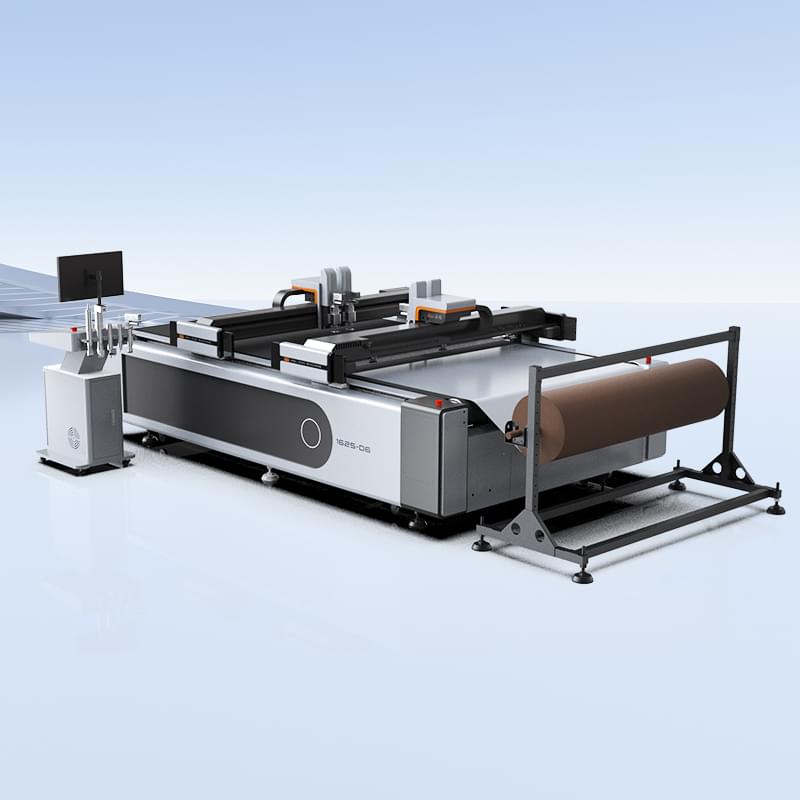

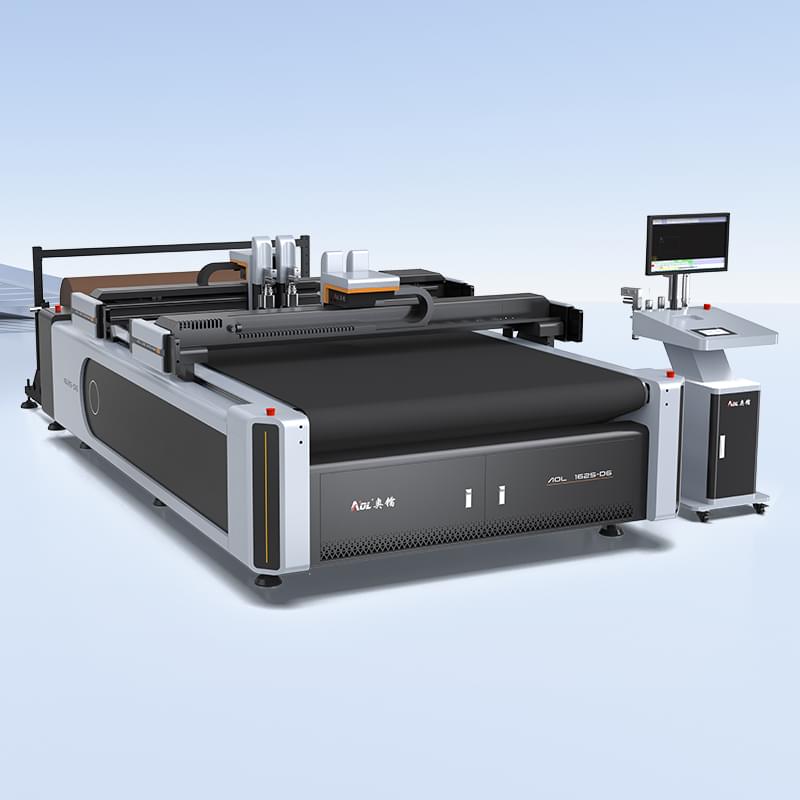

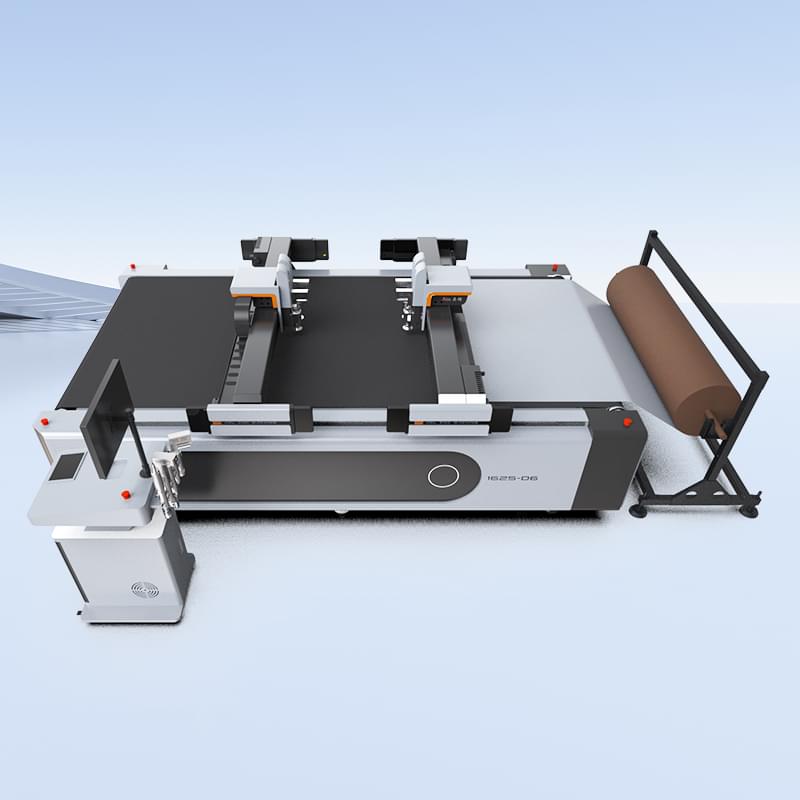

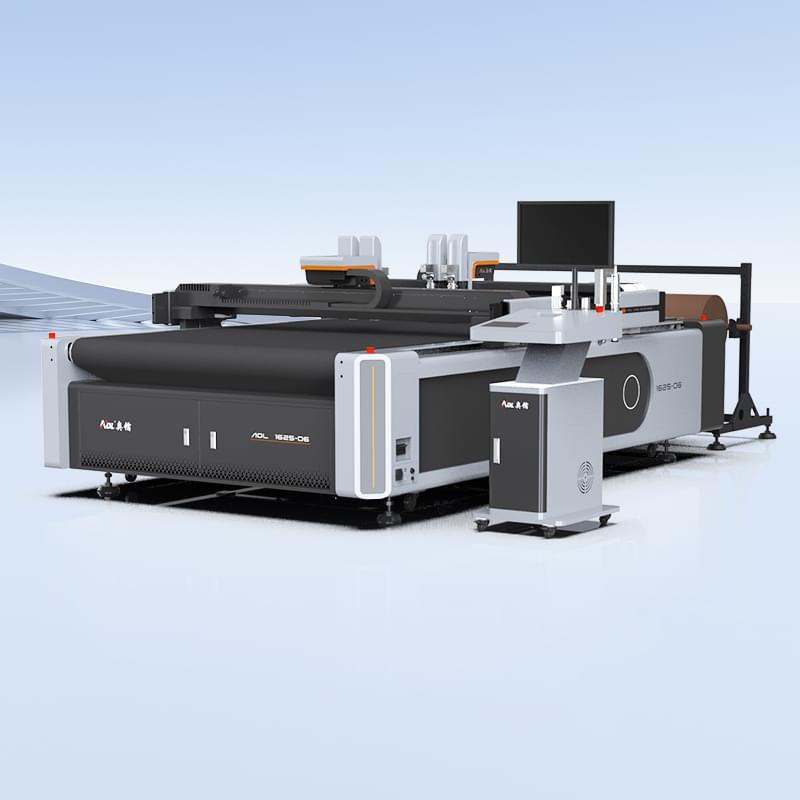

Specifications of AOL Automatic Car Seat Cover Mat Cutting Machine:
| Technical parameters / model | AOL-1625-GA6 | AOL-1825-ZS8 | AOL-2125-ZS10 | Accept special model customization | ||
| Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500 | |||
| Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||
| Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
| safety devices | Safety devices use infrared sensing, safe and reliable | |||||
| Cutting speed | 200-2000mm/s | |||||
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
| Applicable materials | gasket,cotton, linen, silk, blends, fibers, leather, etc. | |||||
| Material fixing method | Vacuum partition adsorption | |||||
| Transmission port | Network port | |||||
| Transmission system | Imported servo motor, linear linear guide, timing belt, lead screw | |||||
| rated power | 11kw | |||||
| Rated voltage | 380V±10%/220V±10% Optional | |||||
| Control System | Chinese and English LCD touch screen | |||||
| Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
| Software | Automatic nesting software, template entry software（Optional） | |||||
| Support file format | AI、PLT、DXF、CDRetc | |||||
| Overall size | 3570x2290x1165mm | 3570x2500x1165mm | 3570x25800x1165mm | |||
ADVANTAGES
Advantage of Car Mat Cushion Cutting Machine
1.High-tech: ultra-high frequency vibration knife technology to achieve perfect cutting.
2.High speed: cutting a 35-piece car surrounded by a foot pad, just five minutes, cut a set of 150-piece car seat cover, just 20 minutes, cut a car cushion just 6 minutes, cut a set Car mats only 80 seconds.
3.High efficiency: no need to die, die-cutting machine, you can complete the leather and other flexible materials die-cutting, indentation, forming work, can save a lot of manpower, die and die-cutting machine costs.
Software advantage of Car Mat Cushion Cutting Machine
1. Car seat cover knife cutting machinehas AOL-CUT self-developed software one-click import, general worker takes 2 hours to be skilled.
2.Super typesetting master software, material utilization rate increases more than 10%.
3.Unique multi-partition technology, adsorption capacity increased by more than 5 times
4.Car mat cutting equipment has projection positioning system: In actual cutting process, it is difficult for users to accurately align the material with the cutting pattern. This system can project the cutting pattern on the processing table with 1: 1, which is convenient for users to feed the alignment.
The user of Aol Car mat cutting machine, can also place the irregular material into the projection area for the alignment cutting, which greatly improves the utilization of the material.
Hardware advantage of AOL Automatic Car Seat Cover Mat Cutting Machine
1. Taiwan linear guide rail transmission system, precision ±0.1 mm.
2. Japanese Panasonic servo system, production efficiency increases more than 3 times.
3. AOL’s unique tools exchange system, cutting, punching, marking automatically finish
4. Automatic pulling and receiving, save time and energy.
5. AOL car seat cover mat cutting machine has won 5 patents technology certifications at home and abroad
AOL’s main products include intelligent blade cutting machine, 3D crystal inner engraving machine, laser marking machine and laser fiber cutting machine. Welcome to consult!
About AOL
AOL is one of the famous professional car mat cushion cutting machine manufacturers and suppliers in China，car mat cushion cutting machine price is right.
AOL Laser is a high-tech modern enterprise integrating R&D, production and sales. Our company has successfully developed laser engraving machine, vibrating knife cutting machine and laser cutting machine series with advanced technology and professional management. We have the trust and support of users at home and abroad, high quality products and perfect service system.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE SGS SO BV and more certificates. Besides, we are making great efforts to develop new products to meet different requirements.
Our machine Sells well in all exported to clients in such kinds of countries and regions as America, Europe, Africa, Asia,Australia and more.
Company strength of AOL
- Foreign trade practitioners with 12 years of experience specialize in docking related orders with customers
- Electricians and fitters with 30 years of experience instruct and participate in the installation of the machine
- AOL invests millions of research and development funds every year to improve machine performance and develop new products
- Hot sales in more than 40 countries around the world, and praised by customers, the repurchase rate is as high as 40%
- Currently, China’s only manufacturer of cutting machines that promises a three-year warranty
Our service
1.Free installation and commissioning,travel expense is on foreign customer.(Including round ticket and accommodation cost)
Packaging Details:
1.Whole film packaging machine.
2.Anti-collision package edge.
