Product description
Multiple tool combinations
Can be equipped with different types of cutting tools to meet different thickness and hardness requirements
Panasonic servo motor
Japan’s Panasonic servo motor, with large torque, durable and continuous power for foam board cutting.
Vacuum adsorption platform
Optional zone adsorption, 8-16 adsorption zones. Following adsorption, strong suction holds the material to ensure accurate cutting data without deformation.
Touch screen operation panel
Color touch control panel, more intuitive operation interface, connect to the computer to directly accept data, set cutting depth and cutter head parameters, have a powerful database, support one-key retrieval.
Precision rack drive
Servo rack drive mode, the Y axis is driven by double servo motors, with strong power and stable performance.
Integral welding bed
The bed adopts welding process, aluminum alloy body frame, anti-corrosion and high hardness, high temperature heat treatment, milling machine finishing, stable and durable
Rack motion
The beam of the machine adopts an all-aluminum structure, which reduces the weight of the beam and ensures the rapid movement of the machine. The rack is used for movement, stable movement, and long use time.
Taiwan drive rail
Adopt Taiwan’s high-quality transmission guide, with its own lubrication system, low friction resistance, to ensure high-speed and smooth cutting.
Scientific electrical control system
The wiring is scientific and reasonable, and each line has a corresponding mark, which is convenient for the maintenance and maintenance of the machine. All electrical components come standard with Schneider and top brand quality.

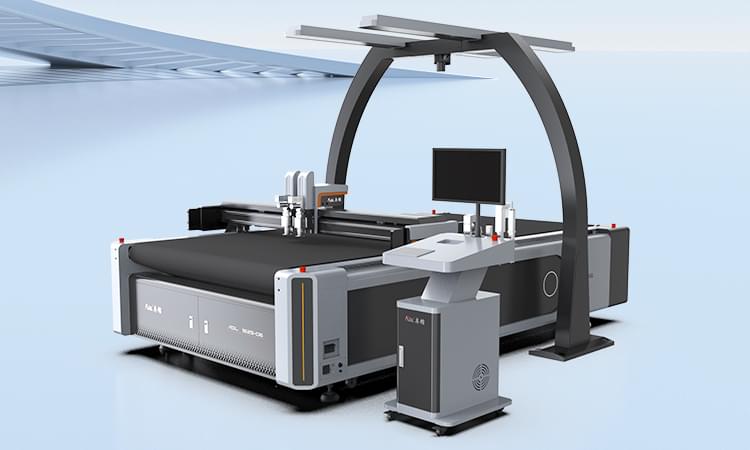

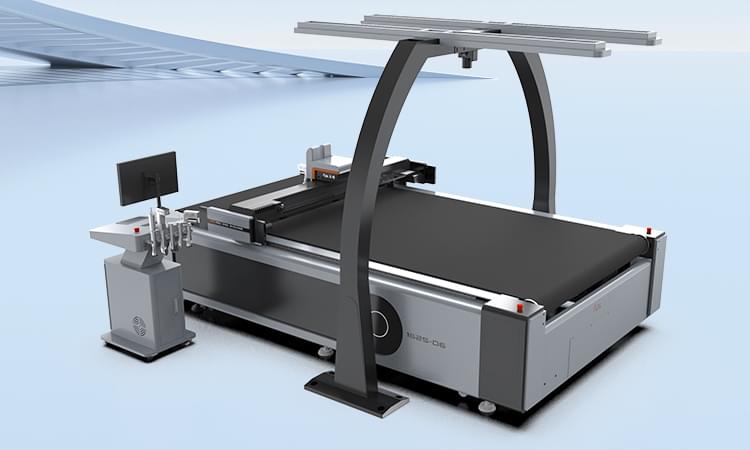

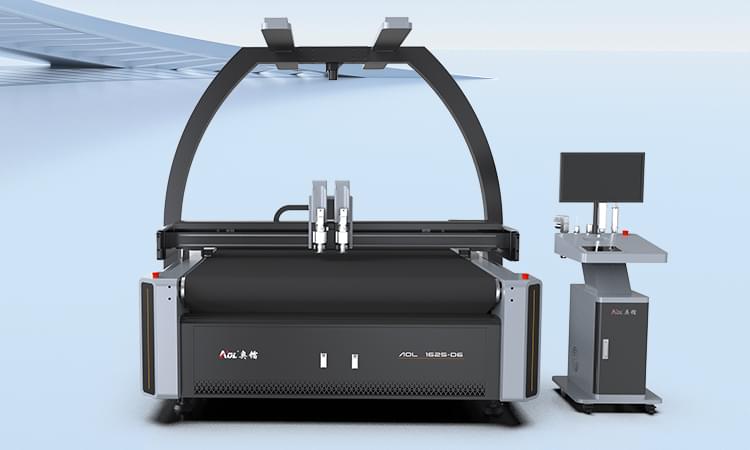

The characteristics of automobile floor mat cutting machine:
1. It can realize high-speed stable, stable, accurate and efficient cutting mode
2. Environmental protection and labor cost saving
3. Can realize special-shaped cutting, simple operation
4. Can realize automatic loading and unloading, more intelligent
AOL car mat cutter is recommended. The cutting surface is neat, the platform is firm, the long life and has a professional after-sales team!
Why choose us AOL auto mat cutting machine?
Why choose us AOL auto mat cutter?
1. Independent research and development of industrial vision system, automatic scanning printing pattern, no cutting path, identification can start cutting.
2. High quality linear guide rail, precision error ±0.1mm.
3. Japan Panasonic servo system provides power, stable and continuous power supply.
4.AOL quick tool change system provides a variety of tool choices for various materials.
5. Aluminum magnesium alloy adsorption platform, durable without deformation.
6. Dust proof treatment, reduce the failure rate of equipment and prolong the service life of equipment.
And our machine also has intelligent optimization typesetting and cutting function, provide better cutting and filling path, save more than 30% of the material. Who can’t love a machine like this!
The parameters of automobile floor mat cutting machine
| TECHNICAL PARAMETERS / MODEL | AOL-1625-ZS6 | AOL-1825-ZS8 | AOL-2125-ZS10 | ACCEPTING SPECIAL-SHAPED CUSTOMIZATION |
|---|---|---|---|---|
| Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500mm | |
| Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||
| Multi-function tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. | |||
| safety devices | Infrared sensing, safe and reliable | |||
| Cutting speed | 200-2000mm/s | |||
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||
| Applicable materials | Various KT boards, Chevron boards, honeycomb boards, car stickers, adhesives, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc. | |||
| Material fixing method | Vacuum partition adsorption | |||
| Transmission port | Network port | |||
| Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |||
| rated power | 11kw | |||
| Rated voltage | 380V±10%/220V±10%Optional | |||
| Control System | Chinese and English LCD touch screen | |||
| Operating environment | Temperature 0-40°C Humidity 20%-80%RH | |||
| software | Automatic nesting software, camera positioning, large format camera system | |||
| Support file format | AI、PLT、DXF、CDR etc. | |||
Automobile floor mat related content

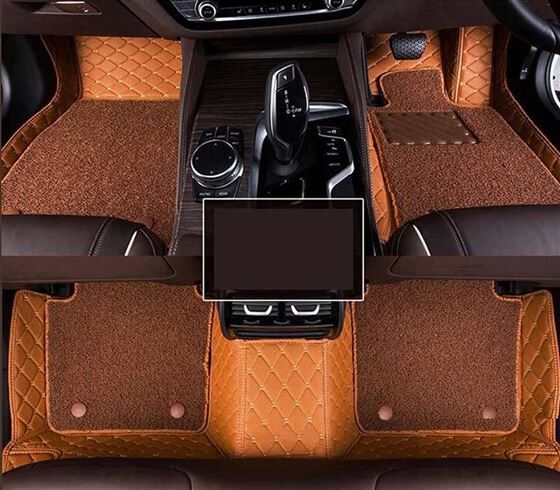

1. What is a car mat
Car floor mat is a kind of environmental protection car interior parts integrating water absorption, dust absorption, decontamination, sound insulation and protection of the main engine blanket. Car mat belongs to the internal decoration, protect the car inside and outside the clean, play a beautiful and comfortable ornament function.
2. What is the function of car floor MATS
Car mat water absorption, vacuuming, decontaminating can effectively prevent residual moisture, dirt and clutch, brake and throttle caused by sliding, prevent safety hazards, reduce the possibility of interior pollution and damage, after all, cleaning pad than cleaning interior is more convenient, more economic. The thick substrate prevents chassis noise and tyre noise and improves driving comfort. Suede car MATS can also be the rest of the noise and car audio echo completely adsorption clean, protect hearing from damage
3. What are the materials of car floor MATS
Car mat material is not single, there are as many as 8 kinds of common, respectively: silk ring mat, leather mat, latex mat, rubber mat, PVC mat, linen mat, chemical fiber mat, and woolen mat, we are interested in can go to search for understanding!
4. Why use a car mat cutter
Compared with the traditional process in the past, the emergence of cutting machine has greatly increased the efficiency of the work and reduced labor costs, a machine can produce a set of car MATS in about 7 to 8 minutes, and only need a person to operate can be completed. Can help users more stable, more accurate to complete high-quality cutting effect.
AOL SERVICE
Packaging details of automobile floor mat cutting machine
Transportation
After sale service
Eight reasons to AOL CNC cutting machine
1. Advanced brand: ten years of professional CNC blades
2. R & D advantages: a number of patented technologies, so that the company has a deep deposit
3. Quality assurance: all products have passed European CE certification. US FDA certification
4. High-quality materials: All CNC cutting machine accessories are selected from industry-leading brands.
5. Advanced technology: starting from Germany, foreign advanced technology, technical support
6. High efficiency: implement one-to-one service to improve the efficiency of corporate feedback
7. Personalized customization: With the development and design functions, customers can do whatever they want
8. After-sales service: provide three-year warranty service and 24-hour online solutions.
AOL company info
Welcome to join AOL, we will share top-level machines and services with customers all over the world.
Media information
AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.
Want to know more machine performance and other information, please leave a message for professional reply.
AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
