automatic corrugated box making cutting machine

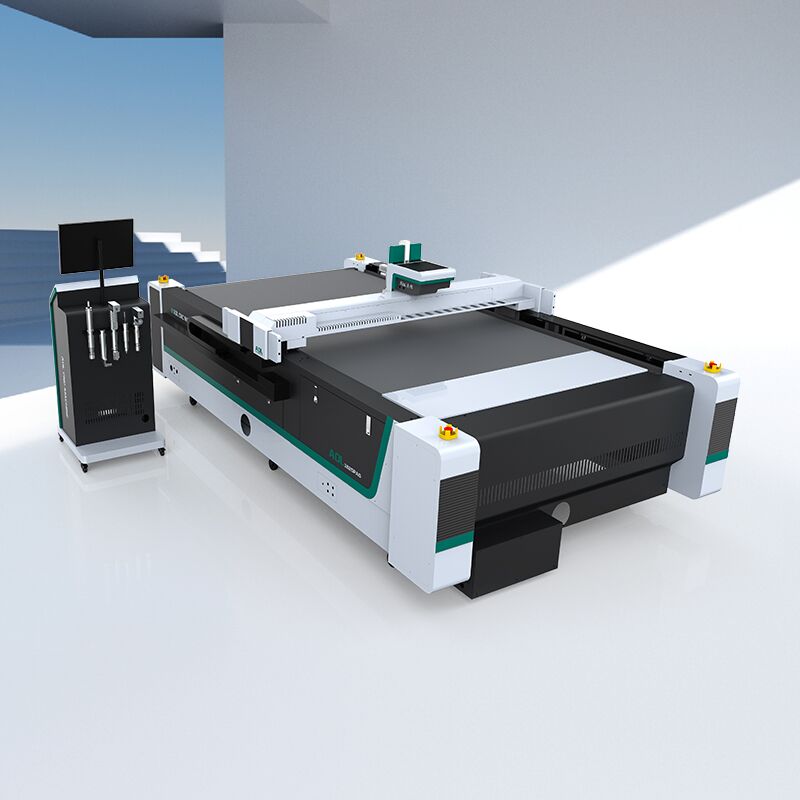

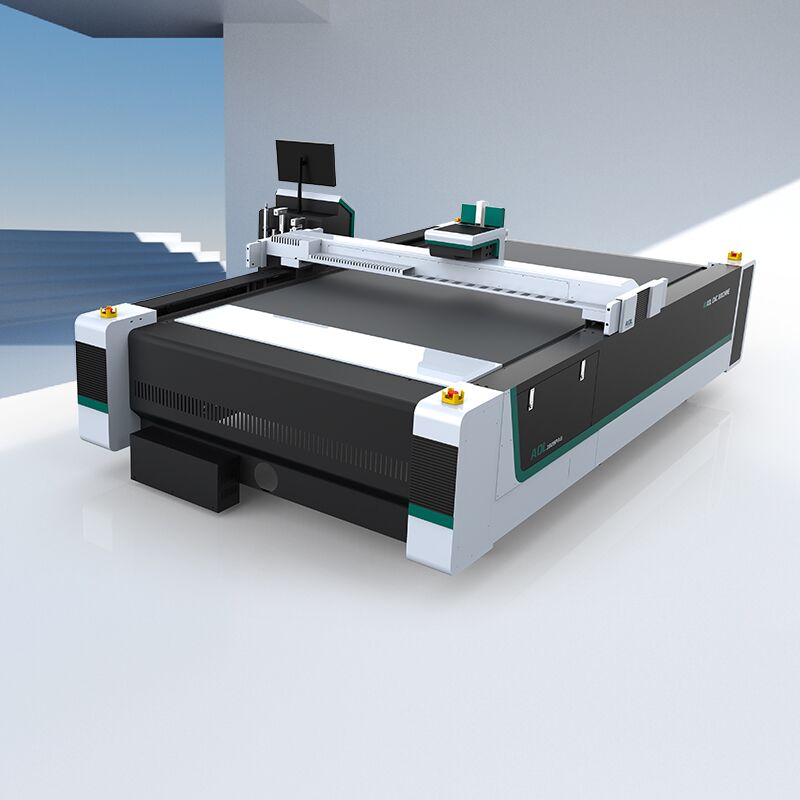

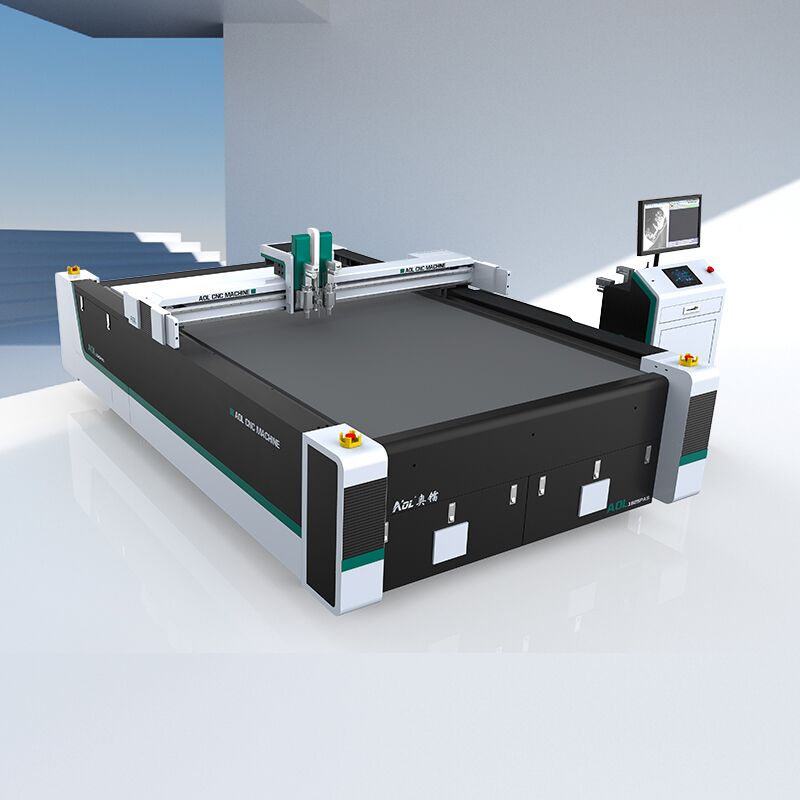

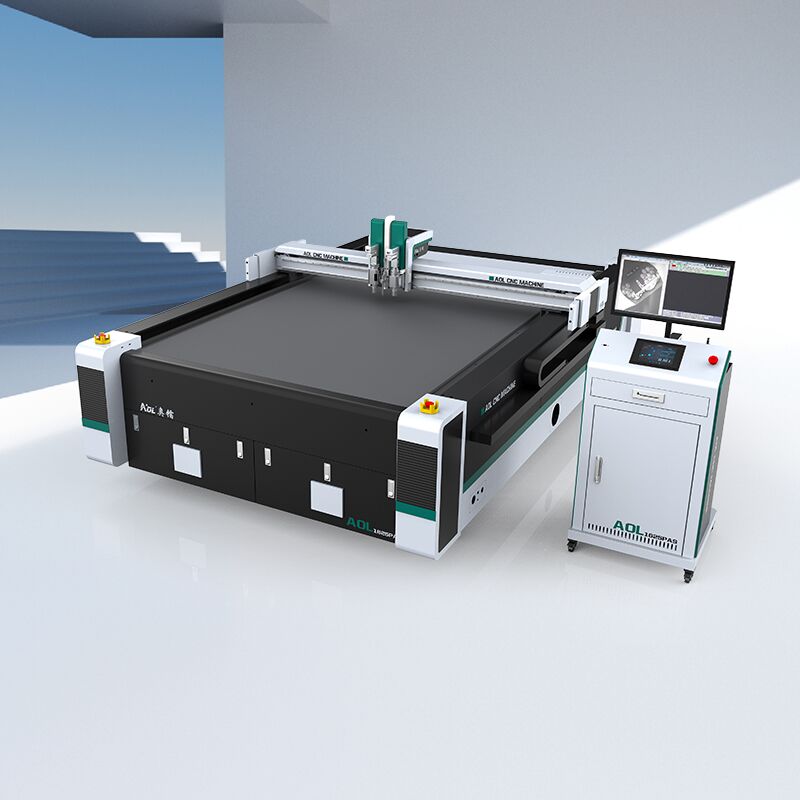

Automatic Hardboard Cutting Machine

High-quality copper wire motor is used, which is firm and reliable. It can work continuously for a long time, and the load power is greatly reduced, which is better than similar machines

Send Inquiry

Description
Reviews (0)

Features of Automatic Hardboard Cutting Machine

1.Adopt high quality copper wire motor, enhanced machine rack, compact structure, solid and reliable.

2.Good lubricating property, it could continuous work two months after adding appropriate amountg gear oil.

3.Less functional loss compared wtih same type cutting machine, load power can be largely reduced.

Advantages of Automatic Hardboard Cutting Machine

(1).Cutting function of oscillation tool

It can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )

(2). Folding function

It can fold corrugated paper, card paper and offset board into perfect folding line.

(3). Function of dotted line

It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.

(4). Location

Location with laser.

(5). Drawing function

It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.

(6). Punching function

We can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.

Advantages of carbon fiber woven cloth cutting machine

Application of Automatic Hardboard Cutting Machine

Leather, hardboard, fiber glass, corrugated cardboard, honeycomb cardboard, sticker, film, foam board,acrylic board, rebound rubber, rubber cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Cutting display of Corrugated Box

Parameter of Automatic Hardboard Cutting Machine

Technical parameters / model	AOL-1625-ZS6	AOL-1825-ZS8	AOL-2125-ZS10
Effective working area	1600x2500mm	1800x2500mm	2100X2500mm
Multi-head optional	Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized
Multi-function tool	Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc.
safety devices	Infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Various KT boards, Chevron boards, honeycomb boards, car stickers, adhesives, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc.
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10%Optional
Control System	Chinese and English LCD touch screen
Operating environment	Temperature 0-40°C Humidity 20%-80%RH
software	Automatic nesting software, camera positioning, large format camera system
Support file format	AI、PLT、DXF、CDR etc.

AOL SERVICE

Details of packaging

1. Outer packaging: standard seaborne export plywood box.
2. Inner packaging: stretchable film and plastic film to prevent moisture. Flexible packaging machine accessories
3. Personalization: If you have special requirements for packaging, you can negotiate friendly.

Transportion

There are many options for transportation, and the default is sea transportation. If you have special requirements, please specify in advance.
Price, according to your destination information, transaction method, transportation method, we will provide you with a specific quotation.

After sale service

1. Our standard warranty period starts from the completion of delivery. We provide you with a three-year warranty service and professional machine maintenance.
2. The wearing parts (blade, countertop) are sold to users at the lowest price.
Delivery time
we have our own factory. After placing the order, we will start manufacturing the sticker cutting machine. At the same time, we will make a reasonable delay based on the order volume of the month. Our delivery time is about 15-20 days on average, if you want to specify a time, we can arrange a reasonable time to complete the delivery.

Eight reasons to choose AOL CNC cutting machine

1. Advanced brand: ten years of professional CNC blades2. R & D advantages: a number of patented technologies, so that the company has a deep deposit
3. Quality assurance: all products have passed European CE certification. US FDA certification
4. High-quality materials: All CNC cutting machine accessories are selected from industry-leading brands.
5. Advanced technology: starting from Germany, foreign advanced technology, technical support
6. High efficiency: implement one-to-one service to improve the efficiency of corporate feedback
7. Personalized customization: With development and design functions, customers can do whatever they want
8. After-sales service: provide three-year warranty service and 24-hour online solutions.

About AOL

AOL CNC Equipment Co., Ltd. is a high-tech enterprise specializing in the development, manufacturing, sales and after-sales service of flexible material cutting and laser cutting machines, mainly including CNC intelligent blade cutting machines, laser cutting machines, laser fiber cutting machines, and laser cutting machines. Various types of cutting machines such as labeling machines can meet the cutting processing of metal materials and flexible materials of different materials, and are widely used in advertising packaging, composite materials, carpet industries, clothing textiles, automotive interiors, and leather industries. In addition, AOL also has an independent CNC cutting machine brand AOYOO.
The company is strong. AOL CNC Equipment Co., Ltd. is a high-tech industry in China and an AAA-level credit enterprise. The product quality has undergone multiple tests and the after-sales system is complete. It has provided reliable CNC cutting machines for more than 8,000 users worldwide. Provide professional industry cutting assembly line solutions for many users,
AOL is committed to multi-industry flexible material cutting solutions for global users. The annual output of high-quality CNC cutting machines in the AOL factory can reach 2000 units, and each machine is provided with a three-year warranty service.

Media information

AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.

AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
