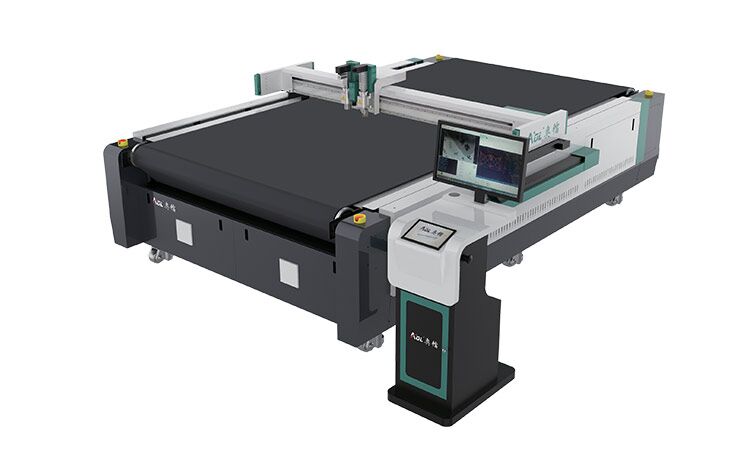

Insulation material cutting machine | AOL Automatic cutting machine

Features of Insulation material cutting machine

1. Environmental protection: no heat source cutting, no pollution and irritating smell

2. Fast: use the servo motor system to cut, and cut quickly

3. Cost: Compared with knife molds, it saves sharpening costs and shortens production time, saving time and economic costs

4. Flexible: Insulating material cutting machine can be customized with a variety of knives, cutting materials are not restricted, suitable for any non-metal flexible materials.

5. Precision: Very small cutting error, can cut high-quality samples and orders.

    In the era of mature automation, it is very important to have an automatic cutting machine for insulating materials. It can not only improve the accuracy of material cutting, but also save 30% of material costs.

Advantage of Insulation material cutting machine

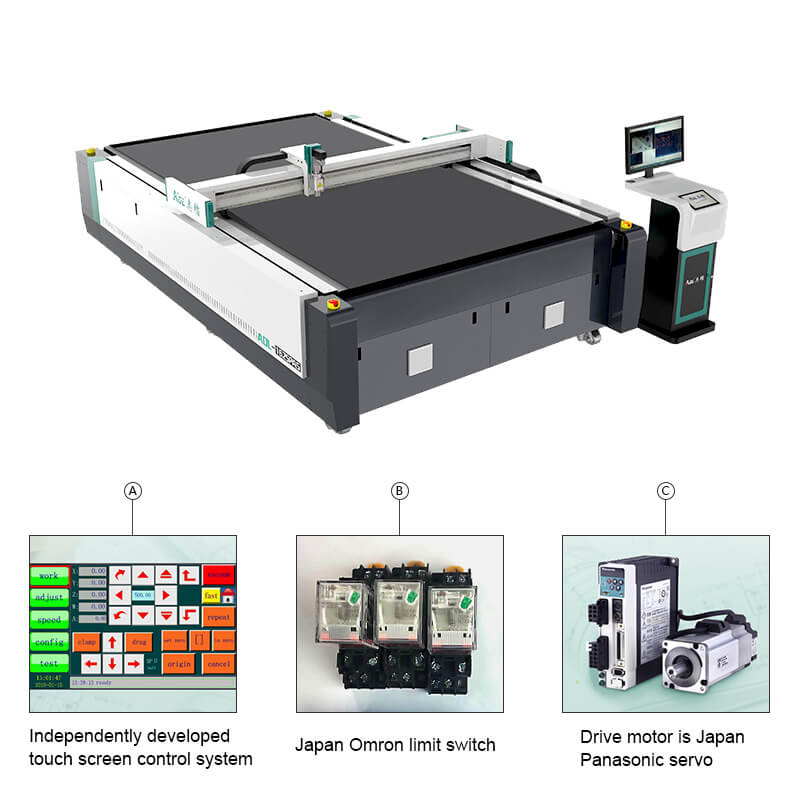

1. Nippon Pine servo system provides stable and long-lasting power. Ensure consistent cutting quality

2. AOL insulation material cutting machine uses top linear guide drive system, accuracy ±0.1mm, high-precision quality

3. Independent research and development of cutting system, open editing of system code, docking with enterprise system.

4. Multiple safety mechanisms (infrared, touch, buttons) to protect the safety of operators

5. The cutting system is equipped with intelligent typesetting software to maximize the use of materials and reduce the waste of materials.

6. Full-break and half-break cutting can be done at one time, and it has a drawing function.

Cutting application industry

Scope of application

Suitable for cutting various insulating materials, high-quality cutting can be done for non-metallic composite materials.
In addition, these can also be cut：
1. Photoelectric material proofing
2. Proofing of flexible circuit boards
3. Cutting of non-metallic materials
4. Cutting of flexible materials
5. Leather material cutting

Parameter of Insulation material cutting machine

Model	AOL-1825PCSII
Working area	2500×1800mm
Rated power	11KW
Fixed mode	Auto feeding type table
Multifunctional head	Oscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife
Tool configuration	Multiple cutting knives
Safety device	Using infrared sensors,  responsive, safe and reliable.
translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickness	≤22mm(according to different cutting materials)
Cutting materials	Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy	≤0.1mm
Capacity	2GB
Transmission system	Imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system	HP-GL compatible format
Voltage	380V±10%

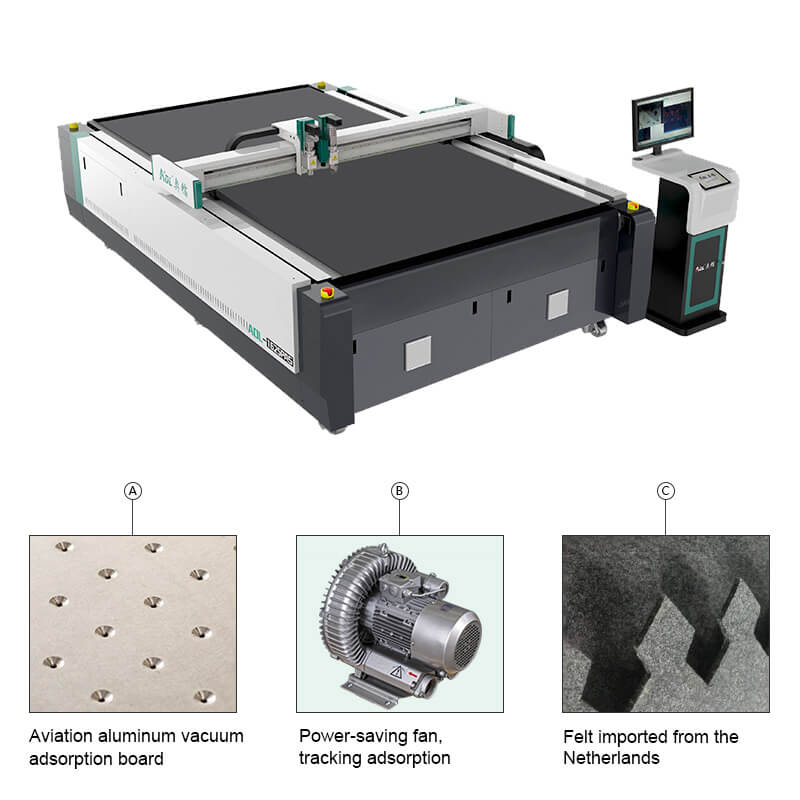

Other configuration	​    import servo motor,high precision helical gear reducer,import rail,rack,sensor,low-voltage appliances,power supply, cable,42mm adsorption platform,automatic feeding,rail,energy saving fan

AOL SERVICE

After sale service

1) Three-year free warranty (except vulnerable parts), free inspection and maintenance of main components.

2) Provide lifetime free technology upgrade service

3) Wearable parts (such as blades, workbench covers) are always available at cost when needed.

4) Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.

5) 24-hour online service, providing free technical support in different languages.

6) On-site technical support can be provided when needed.

7) After receiving the goods, AOL accepts unreasonable returns within seven days.

Packing details of carbon felt cutting machine

1. Outer packaging: standard seaborne export plywood box.

2. Inner packaging: stretchable film and plastic film to prevent moisture.

Can meet special requirements

transportation

There are many options for transportation, and the default is sea transportation. If you have special requirements, please specify in advance.

Price, according to your destination information, transaction method, transportation method, we will provide you with a specific quotation.

←Leave a message to get Quotation

←Get the product catalog and the best quotation

Eight reasons to AOL CNC cutting machine

1. Advanced brand: ten years of professional CNC blades2. R & D advantages: a number of patented technologies, so that the company has a deep deposit
3. Quality assurance: all products have passed European CE certification. US FDA certification
4. High-quality materials: All CNC cutting machine accessories are selected from industry-leading brands.
5. Advanced technology: starting from Germany, foreign advanced technology, technical support
6. High efficiency: implement one-to-one service to improve the efficiency of corporate feedback
7. Personalized customization: With the development and design functions, customers can do whatever they want
8. After-sales service: provide three-year warranty service and 24-hour online solutions.

AOL company info

    AOL is a famous CNC equipment factory located in Jinan, Shandong, China. AOL mainly produce CNC Knife Cutting Machine, Cutting Plotter, CNC Cutting Table and so on. We, as a high-tech enterprise, engaged in research, manufacture and sell the CNC cutting machine and relevant products.

AOL has gained CE certificate, FDA and ISO certificate. Company successfully produce AOL series products of more than 50 sorts, which enjoy good reputation and support. Excellent quality and fast service makes our products spread all over the world as Europe, America, Middle east and South of Asia.

Media information

AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.

Want to know more machine performance and other information, please leave a message for professional reply.

AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
