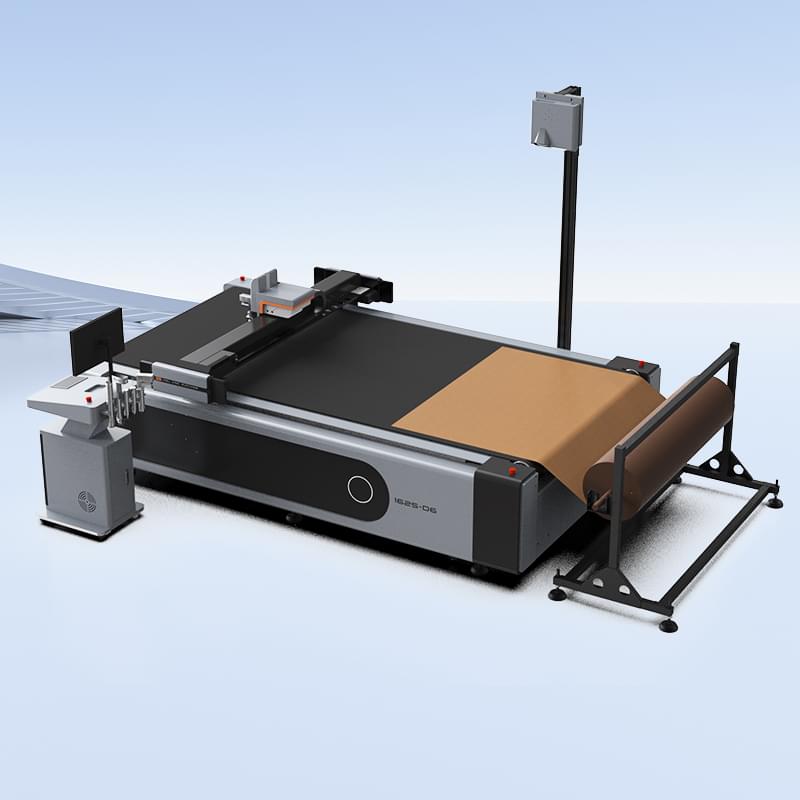

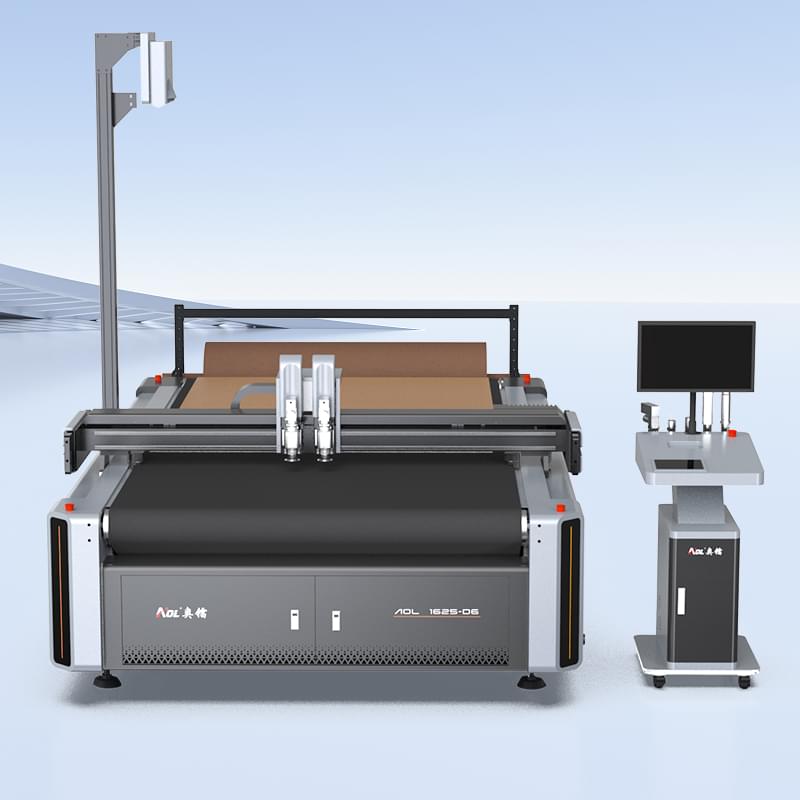

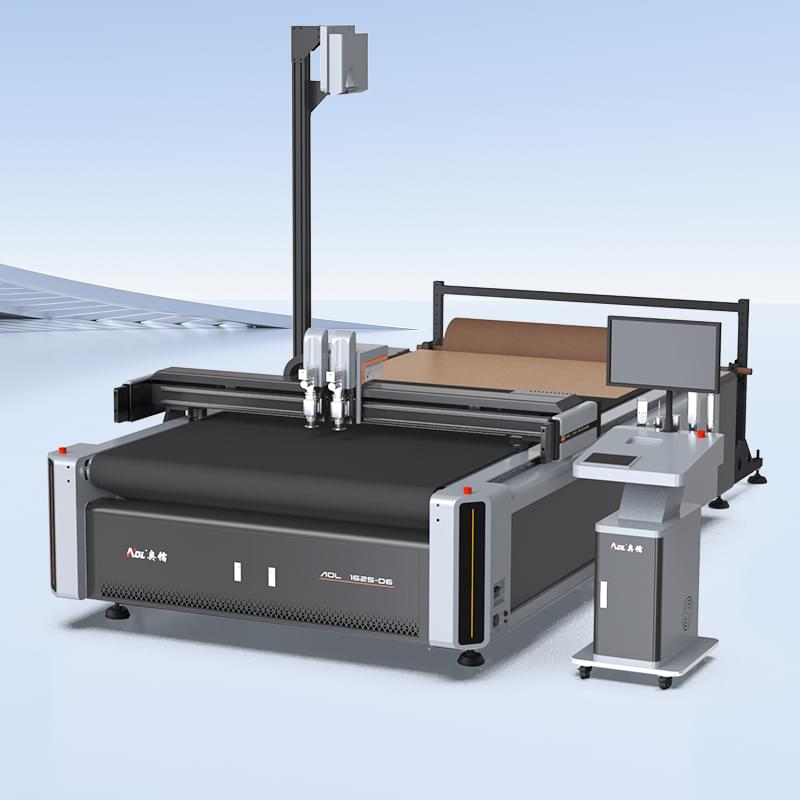

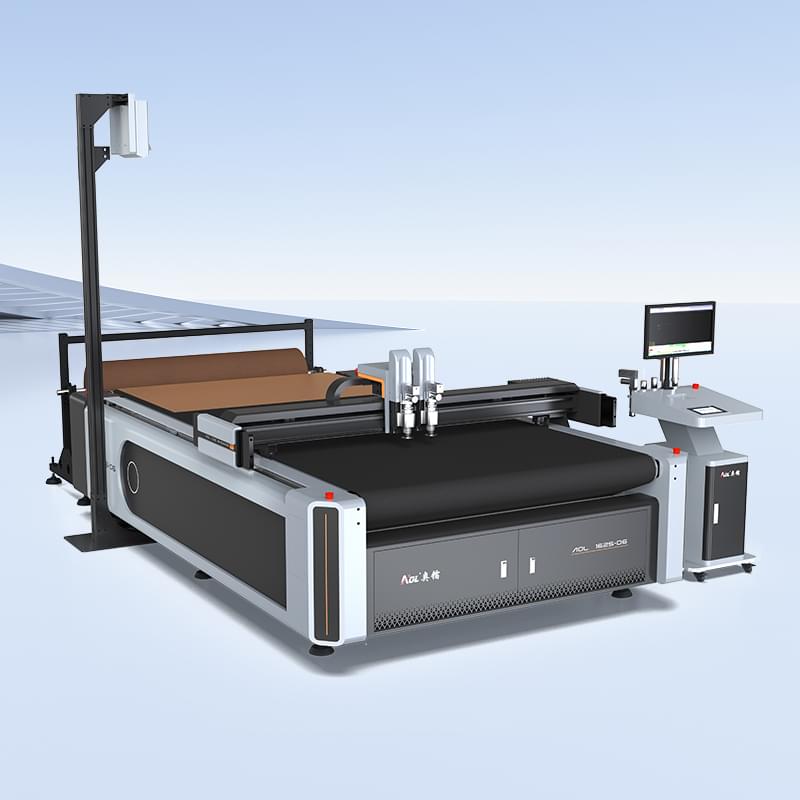

Half Hide Leather Cutter

Half hide leather cutter eliminate the need for expensive dies, and reduce the need for manpower, all while processing leather, sole, lining, and pattern materials efficiently at the highest levels of quality.

AOL CNC half hide leather cutting machine with superior cutting performance, low operating costs, preferential price, and optimized workflow guarantee a quick return on investment. Can cut a variety of materials, including Pu skin, Cow leather, Artificial leather, Synthetic Leather, etc.

AOL become the most important partner of leather goods manufacturers.

Send Inquiry

Description
Reviews (0)

Features of half hide leather cutter

1.Specially developed for cutting, punching and marking on stickers, plastic films and other volume materials.
2.No mold, successfully replaced the traditional die-cutting, without cutting graphical restrictions, cutting speed, short processing cycle.
3.Flight of high-speed galvanometer cutting, continuous automatic cutting of rolls of printed stickers and other materials.
4.Color sensors to locate the cutting graphics than the camera positioning, precision die-cutting, after focusing the optical principle, so that spot more detailed and cut better.
5.Correction system with automatic admission to feed more precise, in order to ensure the die-cutting accuracy, feed speed up to 60m/min, to ensure the efficiency of cutting.

Application of Half Hide Leather Cutter

Applicable for Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, Soft glass, Silicon, Rubber etc.
Leather,PU, Super fiber,EVA,XPE, sandwich, sponge, cladding, Composite leather, sponge+ Cover cloth+ Leather compound leather,PVC mat, Wire ring pad, paper, paperboard,PVC plastic plate.

Technical parameters	AOL-1625PC, AOL-1625PCS, AOL-1825PC, AOL-1825PCS
Effective working area	16002500MM, 18002500MM
Multi-function cutting head	The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut
Tools	Universal Drawing Tool, Creasing Wheel Tool
Moving speed	800-1500mm/s
Repeat precIsion	±0.05mm
Interface	Enternet port
Control panel	LCD touch screen
Drive system	Imported servo motor, linear guid, synchronous belt, screw
Cutting material	Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc
Instruction system	HP- GL Compatible format
Rated power	2. 2KW
Rated voltage	220V
Cutting thickness	≤50mm(According to different material)
Material fixed way	Vacuum adsorption
Auto feeding system	Acuum sucker adsorpting sheet

Advantages of Half Hide Leather Cutter

1.The products has such features as scientific rational design, simple flexible operation;
2.Good stable quality, structural durability, light weight, no noise, safety and reliability;
3.Its material has tidy cuts without burrs and wrinkles.

Why Choose Plastic Composite Mat Board Cutting Machine

About AOL

AOL is one of the famous professional automatic leather knife cutting machine manufacturers and suppliers in China，cnc leather cutting machine price is right.If you need it，welcome to contact us！

Service of AOL

1.Three-year warranty service. Except for wearing parts (blades, knives, felts, vacuum pumps, etc.), other major parts will be repaired free of charge if there are problems during the warranty period.
2.We provide the consumable parts at agent price when you need replacement.
3.24 hours online service each day,free technical support with different languages.
4.We provide door to door technical support ,if necessary.

FAQ

Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What’s the size of your material?
Question 2: What’s the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we’ll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 10 years,we have CE,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
Answer:There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Question 5: If machine have any problem after I receive it, how can I do ?
Answer:Free parts send to you in machine warranty period if machine have any problem. If the parts less than 0.5KG, we pay the postage.

Service support of AOL cutting machine

oscillating knife cutting machine for leather industry also have CNC Leather Cutting Machine, Digital Leather Cutting Machine, Automatic Leather Cutting Machine

The price of CNC knife cutting machine, Please inquire and tell us your cutting material and size.

If you want to know the price of the digital leather cutting machine, please send us the name, size and thickness of the material to be cut, so as to give you the most detailed quotation.
