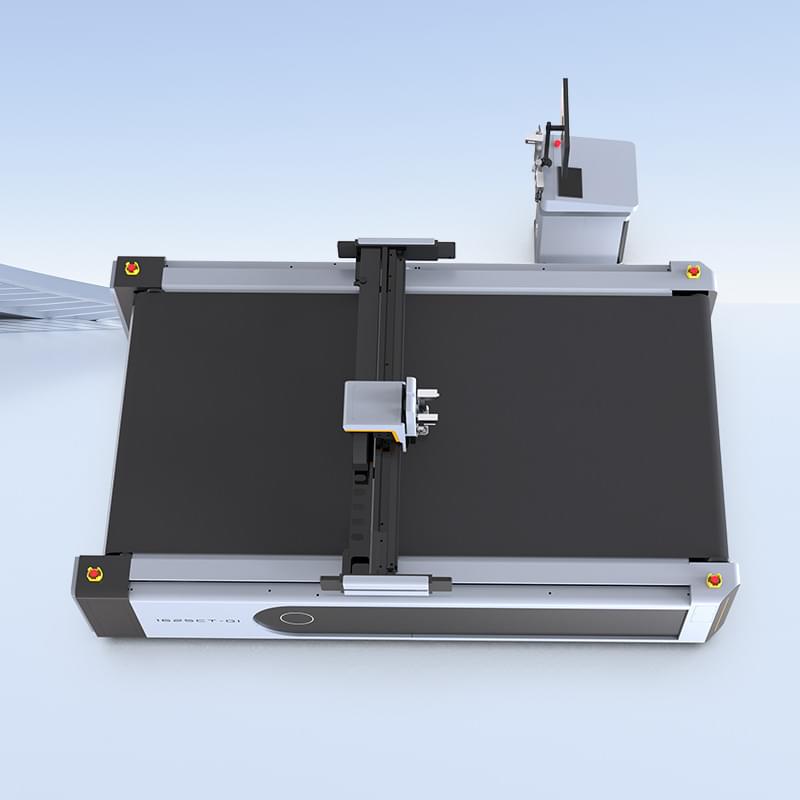

Product description of Gasket cutting machine with oscillating knife and V-cut knife
1,Multiple tool cutter heads, including vibrating knife, drag knife, Marking pen, Creasing Tool, projector.
2, leather, cloth, composite materials can achieve perfect cutting results
3, easy to set half knife, half knife to achieve the perfect effect
4, with safety protection device to prevent personal injury
5, the main models sold in Europe
projection positioning system:In actual cutting process, it is difficult for users to accurately align the material with the cutting pattern.
This system can project the cutting pattern on the processing table with 1: 1, which is convenient for users to feed the alignment. The user can also place the irregular material into the projection area for the alignment cutting, which greatly improves the utilization of the material
Specifications of automatic Gasket cutting machine with oscillating knife and V-cut knife：
|Technical parameters||AOL-1625DA, AOL-1625DAS, AOL-1825DA, AOL-1825DAS|
|Effective working area||1600*2500MM, 1800*2500MM|
|Multi-function cutting head||The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut|
|Tools||Universal Drawing Tool, Creasing Wheel Tool|
|Control panel||LCD touch screen|
|Drive system||Imported servo motor, linear guid, synchronous belt, screw|
|Cutting material||Fgasket,cotton, linen, silk, blends, fibers, leather, PVC, leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material, etc.|
|Instruction system||HP- GL Compatible format|
|Rated power||2. 2KW|
|Cutting thickness||≤50mm(According to different material)|
|Material fixed way||Vacuum adsorption|
|Auto feeding system||Acuum sucker adsorpting sheet|
Advantage of Gigital Gasket cutting machine with oscillating knife and V-cut knife
1. Our machine could save your labor and material more than $120000 every year, the product competitiveness would be improved greatly.
2. Laser projection realize projecting to any position you want ,automatic cutting, small pieces material leftovers could be recycled.
3. Unique multi-zone technology, the adsorption capacity is increased by more than 5 times.
4. The anti-static system of the whole machine to maximize the protection of personnel.
Provide users with solutions that meet the requirements of two-point positioning, four-point positioning, and automatic edge finding and cutting Encourage AOL Gasket cutting machine to complete the sealing special-shaped processing with high precision and high speed. The edge of the finished workpiece is flat and smooth.
Why Choose Plastic Composite Mat Board Cutting Machine
Customer pain points in Gasket cutting machine
1. The utilization rate of manual discharge is too low, which increases the cost of the enterprise
2. High-end products have high technical requirements, which cannot be achieved by traditional craftsmanship
3. Special materials have occupational hazards to the human body
4. The hardness of special materials is extremely high, which cannot be achieved by traditional cutting.
AOL Digital Gasket Cutting Machine can solve the above difficulties
1. Super nesting software, material utilization rate increased by more than 10%
2. Select Japanese Panasonic servo system to increase production efficiency by more than five times
3. Automatic pulling and unloading, saving time, effort and more environmental protection
4. The anti-static system of the whole machine to maximize the protection of personnel safety
5. Professional R&D team can provide assembly line supporting plan
Service OF AOL
1.Three years warranty,main parts are free of charge when problems happened during the guarantee period.
2.We provide the consumable parts at agent price when you need replacement.
3.24 hours online service each day,free technical support with different languages.
4.We provide door to door technical support ,if necessary.
FAQ Of Digital Cutting Machine for gasket industry
AOL is one of the famous professional CNC Cutting Machine manufacturers and suppliers in China. Choose AOL gasket Cutting Machine is right. If you need it, please contact us.
Question 1: I want to buy this machine, what suggestion can you give?
Answer: Please tell me: what material do you process? What’s the size of your material?
Question 2: What’s the delivery cost & time?
Answer: Please tell me your seaport name, I check the shipping cost. After production, we’ll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 10 years, we have CE, ISO, FDA certificates, have exported to Europe, South America, Arab, Asia, Russia, Spain, Australia, and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
Answer:There are english manual or guide videos that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Question 5: If machine have any problem after I receive it, how can I do ?
Answer: Free parts send to you in machine warranty period if machine have any problem. If the parts less than 0.5KG, we pay the postage.
AOL CNC Equipment Co., Ltd. is a high-tech enterprise specializing in the development, manufacturing, sales and after-sales service of flexible material cutting and laser cutting machines, mainly including CNC intelligent blade cutting machines. Various types of cutting machines such as labeling machines can meet the cutting different materials, and are widely used in advertising packaging, composite materials, carpet industries, clothing textiles, automotive interiors, and leather industries.
If you want to know the price of the digital gasket cutting machine, please send us the name, size and thickness of the material to be cut, so as to give you the most detailed quotation.
