Curtain material cutting problem
1. The manual cutting is not precise, the quality is uneven, and the efficiency is slow.
2. Variety of version types, which are difficult to manage.
3. Semi-automatic cutting equipment, manual feeding, waste of time
4. Manual typesetting and cutting, high material cost
Advantage of Curtain cutting machine
1.AOLCUT self-developed software can achieve one lick import and an average worker can operate proficiently in two hours.
2. Super composing software,material utilization rate shall be increased by more than 10%.
3. Taiwan linear guide rail transmission system ,the accuracy can reach ±0.1mm
4. Panasonic servo system from Japan, the production efficiency is increased more than five times.
5、AOL’s unique tool exchange system, cutting, punching, and marking automatic.
6、Automatic material feeding and transmission, save time and effort.
7、Save more than 500,000 labor and raw materials cost every year, Greatly improved the product’s competitiveness.

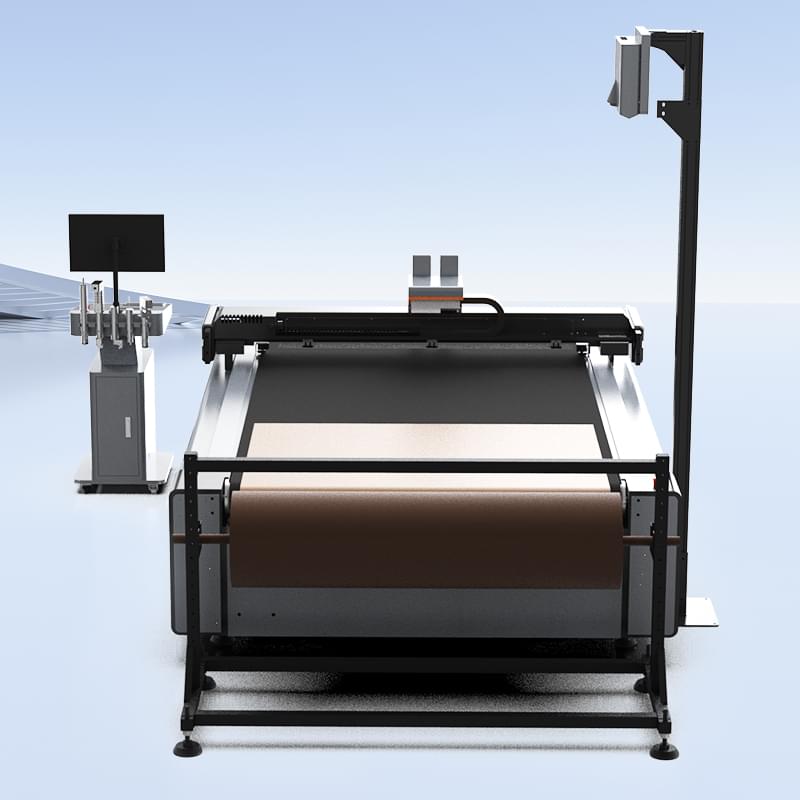

Cutting display of Digital Curtain cutting machine
Curtain materials are generally nylon materials, man-made fiber materials, cotton materials, gauze materials, real silk materials, etc.Digital curtain cutting machine can cut curtain materials of any material, and special shapes can also be cut.
| Technical parameters / model | AOL1625 | AOL1825 | AOL2125 | Accept special model customization | ||
|---|---|---|---|---|---|---|
| Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500 | |||
| Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||
| Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
| safety devices | Safety devices use infrared sensing, safe and reliable | |||||
| Cutting speed | 200-2000mm/s | |||||
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
| Applicable materials | foam, vinyl, cardboard, paper, lable, fabric, gasket,cotton, linen, silk, blends, fibers, leather, etc. | |||||
| Material fixing method | Vacuum partition adsorption | |||||
| Transmission port | Network port | |||||
| Transmission system | Imported servo motor, linear linear guide, timing belt, lead screw | |||||
| rated power | 11kw | |||||
| Rated voltage | 380V±10%/220V±10% Optional | |||||
| Control System | Chinese and English LCD touch screen | |||||
| Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
| Software | Automatic nesting software, template entry software（Optional） | |||||
| Support file format | AI、PLT、DXF、CDRetc | |||||
| Overall size | 3570x2290x1165mm | 3570x2500x1165mm | 3570x25800x1165mm | |||
AOL SERVICE
After sale service
1).Three years free warranty(except consumable parts), main parts are free of charge.when problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don’t have enough time, we will send a detailed training video.
5).24 hours online service, free technical support with different languages.
6).Door to door technical support when needed.
If you could kindly provide us a few information, that would be very helpful for us.
Eight reasons to AOL CNC cutting machine
1. Advanced brand: ten years of professional CNC blades2. R & D advantages: a number of patented technologies, so that the company has a deep deposit
3. Quality assurance: all products have passed European CE certification. US FDA certification
4. High-quality materials: All CNC cutting machine accessories are selected from industry-leading brands.
5. Advanced technology: starting from Germany, foreign advanced technology, technical support
6. High efficiency: implement one-to-one service to improve the efficiency of corporate feedback
7. Personalized customization: With the development and design functions, customers can do whatever they want
8. After-sales service: provide three-year warranty service and 24-hour online solutions.
About AOL
AOL CNC Equipment Co., Ltd. is a high-tech enterprise specializing in the development, manufacturing, sales and after-sales service of flexible material cutting. Various types of cutting machines such as labeling machines can meet the cutting processing of metal materials and flexible materials of different materials, and are widely used in advertising packaging, composite materials, carpet industries, clothing textiles, automotive interiors, and leather industries.
The company is strong. AOL CNC Equipment Co., Ltd. is a high-tech industry in China and an AAA-level credit enterprise. The product quality has undergone multiple tests and the after-sales system is complete. It has provided reliable CNC cutting machines to more than 8,000 users worldwide. Provide professional industry cutting assembly line solutions for many users.
Media information
AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.
Want to know more machine performance and other information, please leave a message for professional reply.
AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
