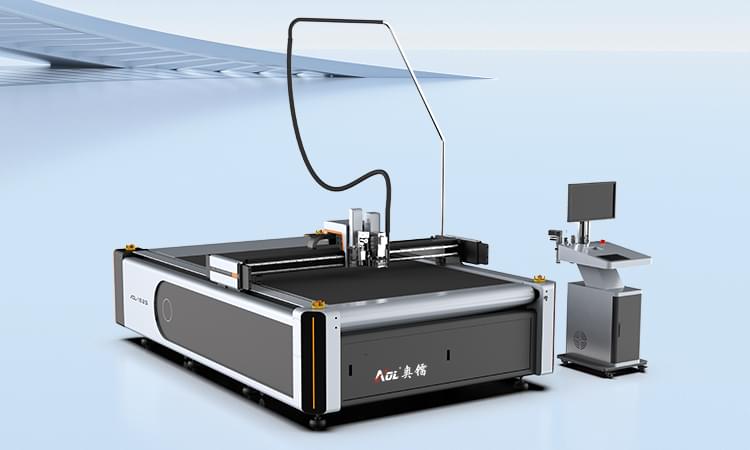

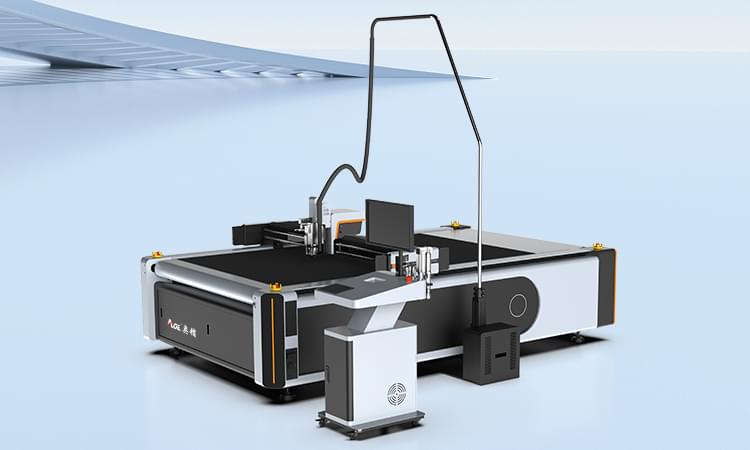

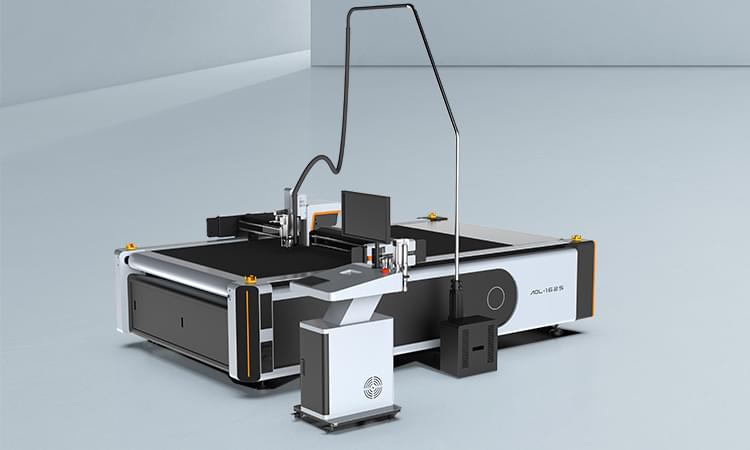

CNC digital display knife cutting machine is a CNC machine used for cutting fabrics, cardboard, leather, cloth, paper, gaskets, fur, honeycomb boards, sponges, foams, composite materials and other soft materials.
This machine is widely used in the clothing industry, shoemaking industry, fashion clothing industry, automotive interior industry, luggage industry, packaging industry, decoration industry, electronics industry, composite materials industry, etc.
Our machine adopts advanced and mature roller table design. The cutting width of your material can be customized according to your requirements. The theoretical cutting length is unlimited. With vacuum adsorption design (small sample adsorption is no longer difficult) and automatic camera positioning function, it can automatically complete the positioning cutting of printed materials, and contour cutting can be performed without manual positioning.
Equipped with vibration knives, drag knives, stroke knives and other knives and optional semi-circular knives, cutters, slotting knives, flat knives, cutters, indentation knives and other knives, it can realize office line cutting, half cutting, dotted line cutting, full cutting and milling cutter cutting, V-CUT slotting, pressure wheel, indentation and other practical functions of scratching hard materials of various materials.
Parameters of textile and leather digital cutting machines:
| Technical parameters / model | AOL1625 | AOL1825 | AOL2125 | Accept special model customization | ||
|---|---|---|---|---|---|---|
| Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500 | |||
| Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||
| Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
| safety devices | Safety devices use infrared sensing, safe and reliable | |||||
| Cutting speed | 200-2000mm/s | |||||
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
| Applicable materials | foam, vinyl, cardboard, paper, lable, fabric, gasket,cotton, linen, silk, blends, fibers, leather, etc. | |||||
| Material fixing method | Vacuum partition adsorption | |||||
| Transmission port | Network port | |||||
| Transmission system | Imported servo motor, linear linear guide, timing belt, lead screw | |||||
| rated power | 11kw | |||||
| Rated voltage | 380V±10%/220V±10% Optional | |||||
| Control System | Chinese and English LCD touch screen | |||||
| Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
| Software | Automatic nesting software, template entry software（Optional） | |||||
| Support file format | AI、PLT、DXF、CDRetc | |||||
| Overall size | 3570x2290x1165mm | 3570x2500x1165mm | 3570x25800x1165mm | |||
When choosing an oscillating knife cutter, you should first check whether your material can be cut. If you are not sure, you can ask the manufacturer.
Projecting and cutting graphic images with a projector can reflect the graphic layout position in real time, making layout efficient and fast, saving time, labor and materials.
It meets the production goals of small batches, multiple orders and multiple styles. It has a wide range of uses and can be used for cutting flexible materials such as leather. It is widely used in the shoemaking industry, clothing industry, luggage industry, automobile industry and decoration industry.
The programmable multi-axis motion controller has reached the domestic and foreign technical level in terms of stability and operability.
The cutting machine transmission system adopts imported linear guides, racks and synchronous belts, and the cutting accuracy completely reaches zero error of the round-trip origin.
The friendly high-definition touch screen human-machine interface is easy to operate and easy to learn. Standard RJ45 network data transmission is fast, stable and reliable.
AOL CNC cutting machine is suitable for product customization or sample cutting. It can automatically and accurately perform cutting and other processing. CNC cutting machine supports different types of cutting, (such as through cutting, kiss cutting. V-groove, compliance, milling, etc.
Want to know more machine performance and other information, please leave a message for professional reply.
AOL intelligent blade cutting machine has high precision and high efficiency. Our professional after-sales service can provide automatic cutting solutions for various industries.
For more information, please consult:
Email: [email protected]
Phone: +86-531-88620680
WhatsApp/We Chat: 0086-18560162709
youtube: https://www.youtube.com/channel/UCDiNQSjBR5DsAX9QfkWF7AA
Website: https://aollaser.net/
